Queue Data Structure
What is a Queue?
A queue is a linear data structure where elements are stored in the FIFO (First In First Out) principle where the first element inserted would be the first element to be accessed. A queue is an Abstract Data Type (ADT) similar to stack, the thing that makes queue different from stack is that a queue is open at both its ends. The data is inserted into the queue through one end and deleted from it using the other end. Queue is very frequently used in most programming languages.

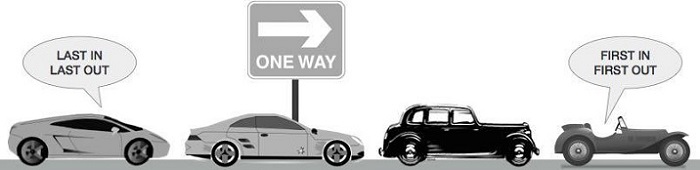

A real-world example of queue can be a single-lane one-way road, where the vehicle enters first, exits first. More real-world examples can be seen as queues at the ticket windows and bus-stops.

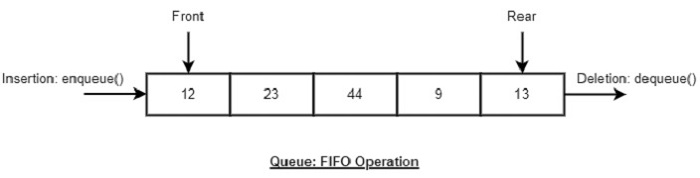

Representation of Queues
Similar to the stack ADT, a queue ADT can also be implemented using arrays, linked lists, or pointers. As a small example in this tutorial, we implement queues using a one-dimensional array.
Basic Operations in Queue
Queue operations also include initialization of a queue, usage and permanently deleting the data from the memory.
The most fundamental operations in the queue ADT include: enqueue(), dequeue(), peek(), isFull(), isEmpty(). These are all built-in operations to carry out data manipulation and to check the status of the queue.
Queue uses two pointers − front and rear. The front pointer accesses the data from the front end (helping in enqueueing) while the rear pointer accesses data from the rear end (helping in dequeuing).
Queue Insertion Operation: Enqueue()
The enqueue() is a data manipulation operation that is used to insert elements into the stack. The following algorithm describes the enqueue() operation in a simpler way.
Algorithm
1. START 2. Check if the queue is full. 3. If the queue is full, produce overflow error and exit. 4. If the queue is not full, increment rear pointer to point the next empty space. 5. Add data element to the queue location, where the rear is pointing. 6. return success. 7. END
Example
Following are the implementations of this operation in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
bool isEmpty(){
return itemCount == 0;
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
while(!isEmpty()) {
int n = removeData();
printf("%d ",n);
}
}
Output
Queue: 3 5 9 1 12 15
#include <iostream>
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
bool isEmpty(){
return itemCount == 0;
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
while(!isEmpty()) {
int n = removeData();
printf("%d ",n);
}
}
Output
Queue: 3 5 9 1 12 15
import java.util.*;
public class Demo{
static final int MAX = 6;
static int intArray[] = new int[MAX];
static int front = 0;
static int rear = -1;
static int itemCount = 0;
public static boolean isFull(){
return itemCount == MAX;
}
public static boolean isEmpty(){
return itemCount == 0;
}
public static int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
public static void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
public static void main(String[] args){
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
System.out.print("Queue: ");
while(!isEmpty()) {
int n = removeData();
System.out.print(n + " ");
}
}
}
Output
Queue: 3 5 9 1 12 15
MAX = 6;
intArray = [0] * MAX
front = 0;
rear = -1;
itemCount = 0;
def isFull():
return itemCount == MAX
def isEmpty():
return itemCount == 0
def removeData():
data = intArray[front+1]
if(front == MAX):
front = 0
itemCount-1
return data
def insert(data):
global rear, itemCount
if(not isFull()):
if(rear == MAX-1):
rear = -1
rear = rear + 1
intArray[rear] = data
itemCount+1
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
print("Queue: ")
for i in range(MAX):
print(intArray[i], end = " ")
while(not isEmpty()):
n = removeData()
print(n, end = " ")
Output
Queue: 3 5 9 1 12 15
Queue Deletion Operation: dequeue()
The dequeue() is a data manipulation operation that is used to remove elements from the stack. The following algorithm describes the dequeue() operation in a simpler way.
Algorithm
1. START 2. Check if the queue is empty. 3. If the queue is empty, produce underflow error and exit. 4. If the queue is not empty, access the data where front is pointing. 5. Increment front pointer to point to the next available data element. 6. Return success. 7. END
Example
Following are the implementations of this operation in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
bool isEmpty(){
return itemCount == 0;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
// remove one item
int num = removeData();
printf("
Element removed: %d
",num);
printf("Updated Queue: ");
while(!isEmpty()) {
int n = removeData();
printf("%d ",n);
}
}
Output
Queue: 3 5 9 1 12 15 Element removed: 3 Updated Queue: 5 9 1 12 15
#include <iostream>
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
bool isEmpty(){
return itemCount == 0;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
// remove one item
int num = removeData();
printf("
Element removed: %d
",num);
printf("Updated Queue: ");
while(!isEmpty()) {
int n = removeData();
printf("%d ",n);
}
}
Output
Queue: 3 5 9 1 12 15 Element removed: 3 Updated Queue: 5 9 1 12 15
public class Demo{
static final int MAX = 6;
static int intArray[] = new int[MAX];
static int front = 0;
static int rear = -1;
static int itemCount = 0;
public static boolean isFull(){
return itemCount == MAX;
}
public static boolean isEmpty(){
return itemCount == 0;
}
public static void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
public static int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
public static void main(String[] args){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
System.out.print("Queue: ");
for(i = 0; i < MAX; i++)
System.out.print(intArray[i] + " ");
// remove one item
int num = removeData();
System.out.print("
Element removed: " + num);
System.out.print("
Updated Queue: ");
while(!isEmpty()) {
int n = removeData();
System.out.print(n + " ");
}
}
}
Output
Queue: 3 5 9 1 12 15 Element removed: 3 Updated Queue: 5 9 1 12 15
MAX = 6
intArray = [0] * MAX
front = 0
rear = -1
itemCount = 0
def isFull():
return itemCount == MAX
def isEmpty():
return itemCount == 0
def insert(data):
global rear, itemCount
if not isFull():
if rear == MAX-1:
rear = -1
rear += 1
intArray[rear] = data
itemCount += 1
def removeData():
global front, itemCount
data = intArray[front]
if front == MAX-1:
front = 0
else:
front += 1
itemCount -= 1
return data
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
print("Queue: ")
for i in range(MAX):
print(intArray[i], end = " ")
num = removeData()
print("
Element removed: ", num)
print("Updated Queue: ")
while(not isEmpty()):
n = removeData()
print(n, end = " ")
Output
Queue: 3 5 9 1 12 15 Element removed: 3 Updated Queue: 5 9 1 12 15
Queue - The peek() Operation
The peek() is an operation which is used to retrieve the frontmost element in the queue, without deleting it. This operation is used to check the status of the queue with the help of the pointer.
Algorithm
1. START 2. Return the element at the front of the queue 3. END
Example
Following are the implementations of this operation in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
int peek(){
return intArray[front];
}
bool isFull(){
return itemCount == MAX;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
Element at front: %d
",peek());
}
Output
Queue: 3 5 9 1 12 15 Element at front: 3
#include <iostream>
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
int peek(){
return intArray[front];
}
bool isFull(){
return itemCount == MAX;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
Element at front: %d
",peek());
}
Output
Queue: 3 5 9 1 12 15 Element at front: 3
public class Demo{
final static int MAX = 6;
static int intArray[] = new int[MAX];
static int front = 0;
static int rear = -1;
static int itemCount = 0;
public static int peek(){
return intArray[front];
}
public static boolean isFull(){
return itemCount == MAX;
}
public static void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
public static void main(String[] args){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
System.out.print("Queue: ");
for(i = 0; i < MAX; i++)
System.out.print(intArray[i] + " ");
System.out.print("
Element at front: " + peek());
}
}
Output
Queue: 3 5 9 1 12 15 Element at front: 3
MAX = 6
intArray = [0] * MAX
front = 0
rear = -1
itemCount = 0
def peek():
return intArray[front]
def isFull():
return itemCount == MAX
def insert(data):
global rear, itemCount
if(not isFull()):
if(rear == MAX-1):
rear = -1
rear = rear + 1
intArray[rear] = data
itemCount+1
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
print("Queue: ")
for i in range(MAX):
print(intArray[i], end = " ")
print("
Element at front: ", peek())
Output
Queue: 3 5 9 1 12 15 Element at front: 3
Queue - The isFull() Operation
The isFull() operation verifies whether the stack is full.
Algorithm
1. START 2. If the count of queue elements equals the queue size, return true 3. Otherwise, return false 4. END
Example
Following are the implementations of this operation in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
");
if(isFull()) {
printf("Queue is full!
");
}
}
Output
Queue: 3 5 9 1 12 15 Queue is full!
#include <iostream>
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isFull(){
return itemCount == MAX;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int main(){
int i;
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
");
if(isFull()) {
printf("Queue is full!
");
}
}
Output
Queue: 3 5 9 1 12 15 Queue is full!
import java.io.*;
public class QueueExample {
static private int intArray[];
private int front;
private int rear;
private int itemCount;
static private int MAX;
QueueExample(int size) {
intArray = new int[size];
front = 0;
rear = -1;
MAX = size;
itemCount = 0;
}
public boolean isFull() {
return itemCount == MAX;
}
public void insert(int key) {
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = key;
itemCount++;
}
}
public static void main (String[] args) {
QueueExample q = new QueueExample(5);
q.insert(1); // inserting 1 in the stack
q.insert(2);
q.insert(3);
q.insert(4);
q.insert(5);
System.out.print("Queue: ");
for(int i = 0; i<MAX; i++){
System.out.print(intArray[i] + " ");
}
if(q.isFull()){
System.out.print("
Queue is full!");
}
}
}
Output
Queue: 1 2 3 4 5 Queue is full!
#python code for isFull in Queue
MAX = 6
intArray = [None] * MAX
front = 0
rear = -1
itemCount = 0
def isFull():
return itemCount == MAX
def insert(data):
global rear, itemCount
if not isFull():
if rear == MAX-1:
rear = -1
rear += 1
intArray[rear] = data
itemCount += 1
#inserting 5 items into the Queue
insert(3)
insert(5)
insert(9)
insert(1)
insert(12)
insert(15)
print("Queue: ", end="")
for i in range(MAX):
print(intArray[i], end=" ")
print()
if isFull():
print("Queue is full!")
Output
Queue: 3 5 9 1 12 15 Queue is full!
Queue - The isEmpty() operation
The isEmpty() operation verifies whether the stack is empty. This operation is used to check the status of the stack with the help of top pointer.
Algorithm
1. START 2. If the count of queue elements equals zero, return true 3. Otherwise, return false 4. END
Example
Following are the implementations of this operation in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isEmpty(){
return itemCount == 0;
}
int main(){
int i;
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
");
if(isEmpty()) {
printf("Queue is Empty!
");
}
}
Output
Queue: 0 0 0 0 0 0 Queue is Empty!
#include <iostream>
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
bool isEmpty(){
return itemCount == 0;
}
int main(){
int i;
printf("Queue: ");
for(i = 0; i < MAX; i++)
printf("%d ", intArray[i]);
printf("
");
if(isEmpty()) {
printf("Queue is Empty!
");
}
}
Output
Queue: 0 0 0 0 0 0 Queue is Empty!
public class Demo{
final static int MAX = 6;
static int intArray[] = new int[MAX];
static int front = 0;
static int rear = -1;
static int itemCount = 0;
public static boolean isEmpty(){
return itemCount == 0;
}
public static void main(String[] args){
int i;
System.out.print("Queue: ");
for(i = 0; i < MAX; i++)
System.out.print(intArray[i] + " ");
if(isEmpty()) {
System.out.print("
Queue is Empty!");
}
}
}
Output
Queue: 0 0 0 0 0 0 Queue is Empty!
#python code for isFull in Queue
MAX = 6
intArray = [None] * MAX
front = 0
rear = -1
itemCount = 0
def isEmpty():
return itemCount == 0
print("Queue: ", end="")
for i in range(MAX):
print(intArray[i], end=" ")
print()
if isEmpty():
print("Queue is empty!")
Output
Queue: None None None None None None Queue is empty!
Queue Complete Implementation
Following are the complete implementations of Queue in various programming languages −
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
int peek(){
return intArray[front];
}
bool isEmpty(){
return itemCount == 0;
}
bool isFull(){
return itemCount == MAX;
}
int size(){
return itemCount;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
int main(){
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
printf("Queue size: %d", size());
printf("
Queue: ");
for(int i = 0; i < MAX; i++){
printf("%d ", intArray[i]);
}
if(isFull()) {
printf("
Queue is full!");
}
// remove one item
int num = removeData();
printf("
Element removed: %d", num);
printf("
Size of Queue after deletion: %d", size());
printf("
Element at front: %d", peek());
}
Output
Queue size: 6 Queue: 3 5 9 1 12 15 Queue is full! Element removed: 3 Size of Queue after deletion: 5 Element at front: 5
#include <iostream>
using namespace std;
#include <string>
#define MAX 6
int intArray[MAX];
int front = 0;
int rear = -1;
int itemCount = 0;
int peek(){
return intArray[front];
}
bool isEmpty(){
return itemCount == 0;
}
bool isFull(){
return itemCount == MAX;
}
int size(){
return itemCount;
}
void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
int main(){
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
cout<<"Queue size: "<<size();
cout<<"
Queue: ";
for(int i = 0; i < MAX; i++){
cout<<intArray[i]<<" ";
}
if(isFull()) {
cout<<"
Queue is full!";
}
// remove one item
int num = removeData();
cout<<"
Element removed: "<<num;
cout<<"
Queue size after deletion: "<<size();
cout<<"
Element at front: " <<peek();
}
Output
Queue size: 6 Queue: 3 5 9 1 12 15 Queue is full! Element removed: 3 Queue size after deletion: 5 Element at front: 5
public class Demo{
final static int MAX = 6;
static int intArray[] = new int[MAX];
static int front = 0;
static int rear = -1;
static int itemCount = 0;
public static int peek(){
return intArray[front];
}
public static boolean isEmpty(){
return itemCount == 0;
}
public static boolean isFull(){
return itemCount == MAX;
}
public static int size(){
return itemCount;
}
public static void insert(int data){
if(!isFull()) {
if(rear == MAX-1) {
rear = -1;
}
intArray[++rear] = data;
itemCount++;
}
}
public static int removeData(){
int data = intArray[front++];
if(front == MAX) {
front = 0;
}
itemCount--;
return data;
}
public static void main(String[] args){
/* insert 5 items */
insert(3);
insert(5);
insert(9);
insert(1);
insert(12);
insert(15);
System.out.print("Queue size: " + size());
System.out.print("
Queue: ");
for(int i = 0; i < MAX; i++){
System.out.print(intArray[i] + " ");
}
if(isFull()) {
System.out.print("
Queue is full!");
}
// remove one item
int num = removeData();
System.out.print("
Element removed: " + num);
System.out.print("
Queue size after deletion: " + size());
System.out.print("
Element at front: " + peek());
}
}
Output
Queue size: 6 Queue: 3 5 9 1 12 15 Queue is full! Element removed: 3 Queue size after deletion: 5 Element at front: 5
MAX = 6
intArray = [0] * MAX
front = 0
rear = -1
itemCount = 0
def peek():
return intArray[front]
def isEmpty():
return itemCount == 0
def isFull():
return itemCount == MAX
def size():
return itemCount
def insert(data):
global rear, itemCount
if not isFull():
if rear == MAX-1:
rear = -1
rear += 1
intArray[rear] = data
itemCount += 1
def removeData():
global front, itemCount
data = intArray[front]
if front == MAX-1:
front = 0
else:
front += 1
itemCount -= 1
return data
def main():
insert(3)
insert(5)
insert(9)
insert(1)
insert(12)
insert(15)
print("Queue size: ", size())
print("Queue: ")
for i in range(MAX):
print(intArray[i], end = " ")
if isFull():
print("
Queue is full!")
num = removeData()
print("Element removed: ", num)
print("Queue size after deletion: ", size())
print("Element at front: ", peek())
main()
Output
Queue size: 6 Queue: 3 5 9 1 12 15 Queue is full! Element removed: 3 Queue size after deletion: 5 Element at front: 5
Queue Implementation in C
Click to check the implementation of Queue Program using C
