BabylonJS - 灯光

在本章中，我们将了解 BabylonJS 使用的灯光。我们首先会了解 babylonjs 提供的不同类型的灯光。

灯光用于产生每个像素接收到的漫反射和镜面反射颜色。之后，它会在材质上使用它来获取每个像素的最终颜色。

babylonjs 提供 4 种类型的灯光。

点光源
定向光源
聚光灯
半球光源

BabylonJS - 点光源

点光源的一个典型示例是太阳，其光线会向各个方向散布。点光源在空间中有一个独特的点，它会从那里向各个方向散布光线。可以使用镜面反射和漫反射属性来控制光的颜色。

语法

以下是 Point Light − 的语法

var light0 = new BABYLON.PointLight("Omni0", new BABYLON.Vector3(1, 10, 1), scene);

点光源有三个不同的参数 −

第一个参数是光源的名称。
第二个参数是点光源的位置。
第三个参数是光源需要附加到的场景。

以下属性用于为上面创建的对象添加颜色 −

light0.diffuse = new BABYLON.Color3(1, 0, 0);
light0.specular = new BABYLON.Color3(1, 1, 1);

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0, -0), scene);
            camera.setPosition(new BABYLON.Vector3(0, 0, -100));
            camera.attachControl(canvas, true);

            var pl = new BABYLON.PointLight("pl", new BABYLON.Vector3(1, 20, 1), scene);
            pl.diffuse = new BABYLON.Color3(0, 1, 0);
            pl.specular = new BABYLON.Color3(1, 0, 0);

            var ground = BABYLON.Mesh.CreateGround("ground", 150, 6, 2, scene);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

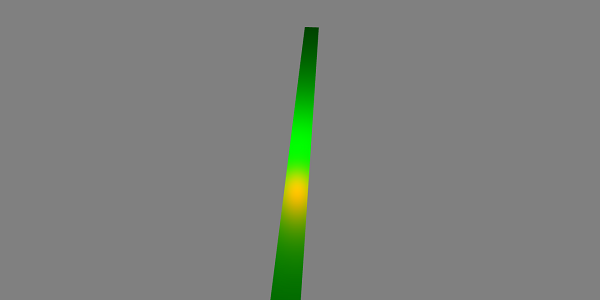

输出

BabylonJS - 定向光

在定向光中，光由方向定义，并根据放置位置向各个方向发射。

var light0 = new BABYLON.DirectionalLight("Dir0", new BABYLON.Vector3(0, -1, 0), scene);

点光源有三个不同的参数 −

第一个参数是光源的名称。
第二个参数是位置。目前，它位于 Y 轴的负 -1 处。
第三个参数是要附加的场景。

在这里，您可以使用镜面反射和漫反射属性添加颜色。

light0.diffuse = new BABYLON.Color3(0, 1, 0);
light0.specular = new BABYLON.Color3(1,0, 0);

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0, -0), scene);
            camera.setPosition(new BABYLON.Vector3(0, 0, -100));
            camera.attachControl(canvas, true);

            var pl = new BABYLON.DirectionalLight("Dir0", new BABYLON.Vector3(0, -10, 0), scene);
            pl.diffuse = new BABYLON.Color3(0, 1, 0);
            pl.specular = new BABYLON.Color3(1, 0, 0);

            var ground = BABYLON.Mesh.CreateGround("ground", 150, 6, 2, scene);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

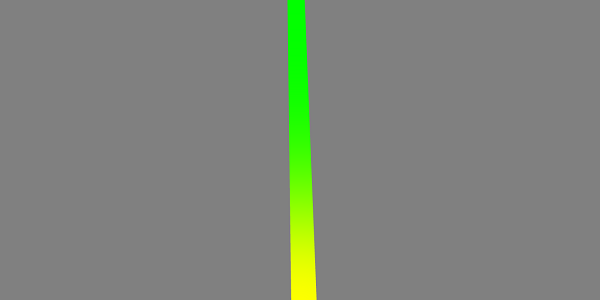

输出

上述代码行生成以下输出 −

BabylonJS - 聚光灯

聚光灯就像以锥形落下的光线。

语法

以下是聚光灯的语法 −

var light0 = new BABYLON.SpotLight("Spot0", new BABYLON.Vector3(0, 30, -10), new BABYLON.Vector3(0, -1, 0), 0.8, 2, scene);

点光源有 5 个不同的参数 −

第 1 个参数是光源的名称。
第 2 个参数是位置。
第 3 个参数是方向。
第 4 个参数是角度。
第 5 个参数是指数。

这些值定义了从位置开始向方向发射的光锥。镜面反射和漫反射用于控制光的颜色。

light0.diffuse = new BABYLON.Color3(1, 0, 0);
light0.specular = new BABYLON.Color3(1, 1, 1);

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0, -0), scene);
            camera.setPosition(new BABYLON.Vector3(0, 0, -100));
            camera.attachControl(canvas, true);

            var light0 = new BABYLON.SpotLight("Spot0", new BABYLON.Vector3(0, 30, -10), new BABYLON.Vector3(0, -1, 0), 0.8, 2, scene);
            light0.diffuse = new BABYLON.Color3(0, 1, 0);
            light0.specular = new BABYLON.Color3(1, 0, 0);

            var ground = BABYLON.Mesh.CreateGround("ground", 80,80, 2, scene);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

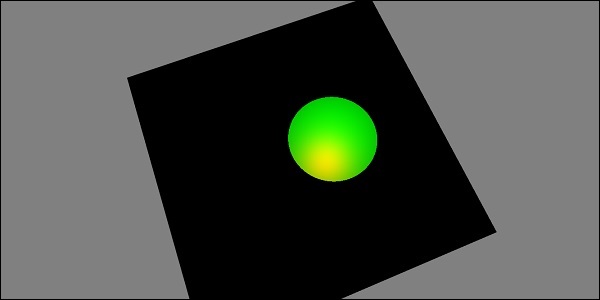

输出

上述代码行生成以下输出 −

BabylonJS - 半球光

半球光更多的是获取环境光。光的方向朝向天空。光有 3 种颜色;一种用于天空，一种用于地面，最后一种用于镜面反射。

语法

以下是半球光的语法 −

var light0 = new BABYLON.HemisphericLight("Hemi0", new BABYLON.Vector3(0, 1, 0), scene);

对于颜色

light0.diffuse = new BABYLON.Color3(1, 0, 0);
light0.specular = new BABYLON.Color3(0, 1, 0);
light0.groundColor = new BABYLON.Color3(0, 0, 0);

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0, -0), scene);
            camera.setPosition(new BABYLON.Vector3(0, 0, -100));
            camera.attachControl(canvas, true);

            var light0 = new BABYLON.HemisphericLight("Hemi0", new BABYLON.Vector3(0, 1, 0), scene);
            light0.diffuse = new BABYLON.Color3(1, 0, 0);
            light0.specular = new BABYLON.Color3(0, 1, 0);
            light0.groundColor = new BABYLON.Color3(0, 0, 0);

            var ground = BABYLON.Mesh.CreateGround("ground", 100,100, 2, scene);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

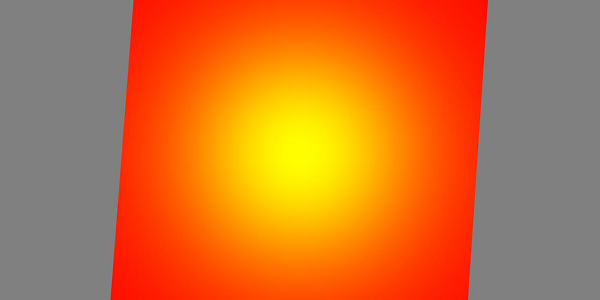

输出

上述代码行生成以下输出 −
