MATLAB Simulink - 数学库
在本章中,我们将学习如何对两个给定信号求和并获得输出。
选择空白模型并打开Simulink库浏览器,如下所示 −

我们将使用 Mathoperation 中的添加模块组合线性调频信号和正弦波模块,并查看最终显示。

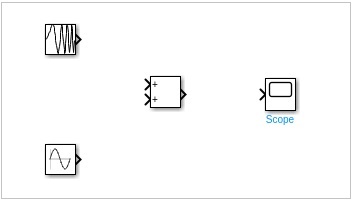

让我们选择我们想要的块。 从源库中选择线性调频信号和正弦波,从数学运算中添加块,从接收器库中添加范围块。

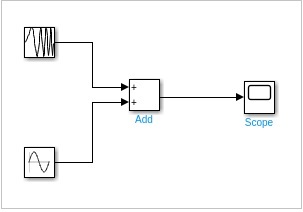

将线路连接到每个块。

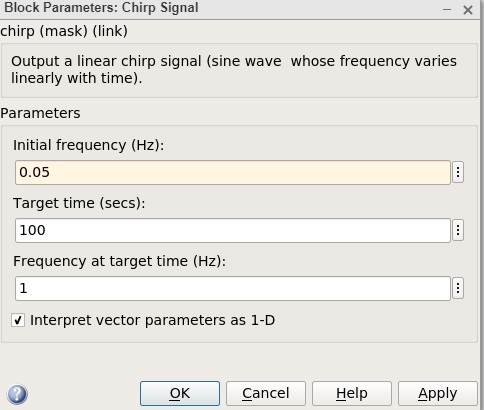

双击线性调频信号并将初始频率从 0.1 更改为 0.05,然后单击"确定"按钮。

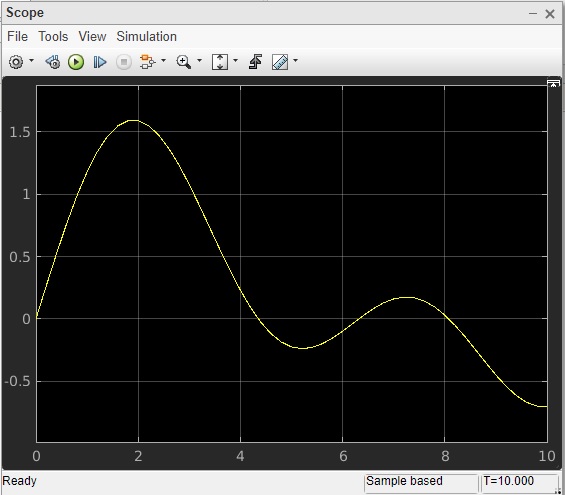

其他块保留为默认值。 现在,单击运行以查看范围内的输出,如下所示。
