JavaFX - UI 控件

每个用户界面都会考虑以下三个主要方面 −

  • UI 元素 − 这些是用户最终看到并与之交互的核心视觉元素。JavaFX 提供了从基本到复杂的广泛使用和常见元素的庞大列表,我们将在本教程中介绍这些元素。

  • 布局 − 它们定义应如何在屏幕上组织 UI 元素,并为 GUI(图形用户界面)提供最终的外观和感觉。这部分将在布局章节中介绍。

  • 行为 − 这些是用户与 UI 元素交互时发生的事件。这部分将在事件处理章节中介绍。

JavaFX 在包 javafx.scene.control 中提供了几个类。为了创建各种 GUI 组件(控件),JavaFX 支持多种控件,例如日期选择器、按钮文本字段等。

每个控件都由一个类表示;您可以通过实例化其各自的类来创建控件。

以下是使用 JavaFX 设计 GUI 时常用控件的列表。

S.No 控制 &描述
1

Label

标签对象是用于放置文本的组件。

2

Button

此类创建一个带标签的按钮。

3

ColorPicker

颜色选择器提供了一个控件窗格,旨在允许用户操作和选择颜色。

4

CheckBox

复选框是一个图形组件,可以处于开启(true)或关闭(false)状态。

5

RadioButton

RadioButton 类是一个图形组件,在组中可以处于开启(true)或关闭(false)状态。

6

ListView

ListView 组件向用户显示一个滚动的文本项列表。

7

TextField

TextField 对象是一个文本组件,允许编辑一行文本文本。

8

PasswordField

PasswordField 对象是专门用于输入密码的文本组件。

9

Scrollbar

Scrollbar 控件表示滚动条组件,以便用户从一系列值中进行选择。

10

FileChooser

FileChooser 控件表示一个对话框窗口,用户可以从中选择文件。

11

ProgressBar

随着任务接近完成,进度条将显示任务的完成百分比。

12

Slider

滑块允许用户通过在有界间隔内滑动旋钮以图形方式选择值。

示例

以下程序是一个在 JavaFX 中显示登录页面的示例。在这里,我们使用控件 标签、文本字段、密码字段按钮

将此代码保存在名为 LoginPage.java 的文件中。

import javafx.application.Application;
import static javafx.application.Application.launch;
import javafx.geometry.Insets;
import javafx.geometry.Pos;

import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.PasswordField;
import javafx.scene.layout.GridPane;
import javafx.scene.text.Text;
import javafx.scene.control.TextField;
import javafx.stage.Stage;

public class LoginPage extends Application {
   @Override
   public void start(Stage stage) {
      //creating label email
      Text text1 = new Text("Email");

      //creating label password
      Text text2 = new Text("Password");

      //Creating Text Filed for email
      TextField textField1 = new TextField();

      //Creating Text Filed for password
      PasswordField textField2 = new PasswordField();

      //Creating Buttons
      Button button1 = new Button("Submit");
      Button button2 = new Button("Clear");

      //Creating a Grid Pane
      GridPane gridPane = new GridPane();

      //Setting size for the pane
      gridPane.setMinSize(400, 200);

      //Setting the padding
      gridPane.setPadding(new Insets(10, 10, 10, 10));

      //Setting the vertical and horizontal gaps between the columns
      gridPane.setVgap(5);
      gridPane.setHgap(5);

      //Setting the Grid alignment
      gridPane.setAlignment(Pos.CENTER);

      //Arranging all the nodes in the grid
      gridPane.add(text1, 0, 0);
      gridPane.add(textField1, 1, 0);
      gridPane.add(text2, 0, 1);
      gridPane.add(textField2, 1, 1);
      gridPane.add(button1, 0, 2);
      gridPane.add(button2, 1, 2);

      //Styling nodes
      button1.setStyle("-fx-background-color: darkslateblue; -fx-text-fill: white;");
      button2.setStyle("-fx-background-color: darkslateblue; -fx-text-fill: white;");

      text1.setStyle("-fx-font: normal bold 20px 'serif' ");
      text2.setStyle("-fx-font: normal bold 20px 'serif' ");
      gridPane.setStyle("-fx-background-color: BEIGE;");

      //Creating a scene object
      Scene scene = new Scene(gridPane);

      //Setting title to the Stage
      stage.setTitle("CSS Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的 java 文件。

javac LoginPage.java
java LoginPage

执行时,上述程序将生成一个 JavaFX 窗口,如下所示。

CSS 示例

以下程序是注册表单的示例,它演示了 JavaFX 中的控件,例如日期选择器、单选按钮、切换按钮、复选框、列表视图、选择列表等。

将此代码保存在名为 Registration.java 的文件中。

import javafx.application.Application;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;

import javafx.geometry.Insets;
import javafx.geometry.Pos;

import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.CheckBox;
import javafx.scene.control.ChoiceBox;
import javafx.scene.control.DatePicker;
import javafx.scene.control.ListView;
import javafx.scene.control.RadioButton;
import javafx.scene.layout.GridPane;
import javafx.scene.text.Text;
import javafx.scene.control.TextField;
import javafx.scene.control.ToggleGroup;
import javafx.scene.control.ToggleButton;
import javafx.stage.Stage;

public class Registration extends Application {
   @Override
   public void start(Stage stage) {
      //Label for name
      Text nameLabel = new Text("Name");

      //Text field for name
      TextField nameText = new TextField();

      //Label for date of birth
      Text dobLabel = new Text("Date of birth");

      //date picker to choose date
      DatePicker datePicker = new DatePicker();

      //Label for gender
      Text genderLabel = new Text("gender");

      //Toggle group of radio buttons
      ToggleGroup groupGender = new ToggleGroup();
      RadioButton maleRadio = new RadioButton("male");
      maleRadio.setToggleGroup(groupGender);
      RadioButton femaleRadio = new RadioButton("female");
      femaleRadio.setToggleGroup(groupGender);

      //Label for reservation
      Text reservationLabel = new Text("Reservation");

      //Toggle button for reservation
      ToggleButton Reservation = new ToggleButton();
      ToggleButton yes = new ToggleButton("Yes");
      ToggleButton no = new ToggleButton("No");
      ToggleGroup groupReservation = new ToggleGroup();
      yes.setToggleGroup(groupReservation);
      no.setToggleGroup(groupReservation);

      //Label for technologies known
      Text technologiesLabel = new Text("Technologies Known");

      //check box for education
      CheckBox javaCheckBox = new CheckBox("Java");
      javaCheckBox.setIndeterminate(false);

      //check box for education
      CheckBox dotnetCheckBox = new CheckBox("DotNet");
      javaCheckBox.setIndeterminate(false);

      //Label for education
      Text educationLabel = new Text("Educational qualification");

      //list View for educational qualification
      ObservableList<String> names = FXCollections.observableArrayList(
         "Engineering", "MCA", "MBA", "Graduation", "MTECH", "Mphil", "Phd");
      ListView<String> educationListView = new ListView<String>(names);

      //Label for location
      Text locationLabel = new Text("location");

      //Choice box for location
      ChoiceBox locationchoiceBox = new ChoiceBox();
      locationchoiceBox.getItems().addAll
         ("Hyderabad", "Chennai", "Delhi", "Mumbai", "Vishakhapatnam");

      //Label for register
      Button buttonRegister = new Button("Register");

      //Creating a Grid Pane
      GridPane gridPane = new GridPane();

      //Setting size for the pane
      gridPane.setMinSize(500, 500);

      //Setting the padding
      gridPane.setPadding(new Insets(10, 10, 10, 10));

      //Setting the vertical and horizontal gaps between the columns
      gridPane.setVgap(5);
      gridPane.setHgap(5);

      //Setting the Grid alignment
      gridPane.setAlignment(Pos.CENTER);

      //Arranging all the nodes in the grid
      gridPane.add(nameLabel, 0, 0);
      gridPane.add(nameText, 1, 0);

      gridPane.add(dobLabel, 0, 1);
      gridPane.add(datePicker, 1, 1);

      gridPane.add(genderLabel, 0, 2);
      gridPane.add(maleRadio, 1, 2);
      gridPane.add(femaleRadio, 2, 2);
      gridPane.add(reservationLabel, 0, 3);
      gridPane.add(yes, 1, 3);
      gridPane.add(no, 2, 3);

      gridPane.add(technologiesLabel, 0, 4);
      gridPane.add(javaCheckBox, 1, 4);
      gridPane.add(dotnetCheckBox, 2, 4);

      gridPane.add(educationLabel, 0, 5);
      gridPane.add(educationListView, 1, 5);

      gridPane.add(locationLabel, 0, 6);
      gridPane.add(locationchoiceBox, 1, 6);

      gridPane.add(buttonRegister, 2, 8);

      //Styling nodes
      buttonRegister.setStyle(
         "-fx-background-color: darkslateblue; -fx-textfill: white;");

      nameLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      dobLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      genderLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      reservationLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      technologiesLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      educationLabel.setStyle("-fx-font: normal bold 15px 'serif' ");
      locationLabel.setStyle("-fx-font: normal bold 15px 'serif' ");

      //Setting the back ground color
      gridPane.setStyle("-fx-background-color: BEIGE;");

      //Creating a scene object
      Scene scene = new Scene(gridPane);

      //Setting title to the Stage
      stage.setTitle("Registration Form");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的 java 文件。

javac Registration.java
java Registration

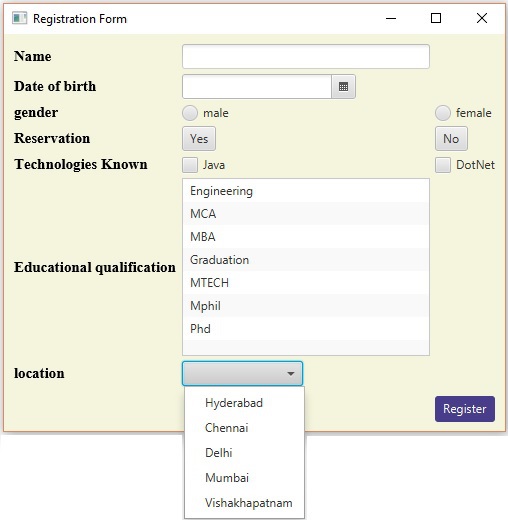

执行时,上述程序将生成一个 JavaFX 窗口,如下所示。

注册表
