Flex - Rotate3D 效果

简介

Rotate3D 类围绕 x、y 或 z 轴在三维空间中旋转目标对象。旋转围绕目标的变换中心进行。

类声明

以下是 spark.effects.Rotate3D 类的声明 −

public class Rotate3D
   extends AnimateTransform3D

公共属性

Sr.No	属性 &描述
1	angleXFrom : Number 目标对象绕 x 轴旋转的起始角度，以度为单位。
2	angleXTo : Number 目标对象绕 x 轴旋转的终止角度，以度为单位。
3	angleYFrom : Number 目标对象绕 y 轴旋转的起始角度，以度为单位。
4	angleYTo : Number 目标对象绕 y 轴旋转的结束角度，以度为单位。
5	angleZFrom : Number 目标对象绕 z 轴旋转的起始角度，以度为单位。
6	angleZTo : Number 目标对象绕 z 轴旋转的结束角度，以度为单位。

公共方法

Sr.No	方法 &描述
1	Rotate3D(target:Object = null) 构造函数。

继承的方法

此类从以下类继承方法 −

spark.effects.AnimateTransform3D
spark.effects.AnimateTransform
spark.effects.Animate
mx.effects.Effect
flash.events.EventDispatcher
Object

Flex Rotate3D 效果示例

让我们按照以下步骤检查通过创建测试应用程序在 Flex 应用程序中实现 Rotate3D 效果 −

步骤	说明
1	按照 Flex - 创建应用程序一章中的说明，在 com.tutorialspoint.client 包下创建一个名为 HelloWorld 的项目。
2	按照下面的说明修改 HelloWorld.mxml。保持其余文件不变。
3	编译并运行应用程序以确保业务逻辑按要求运行。

以下是修改后的 mxml 文件 src/com.tutorialspoint/HelloWorld.mxml 的内容。

<?xml version = "1.0" encoding = "utf-8"?>
<s:Application xmlns:fx = "http://ns.adobe.com/mxml/2009"
   xmlns:s = "library://ns.adobe.com/flex/spark"
   xmlns:mx = "library://ns.adobe.com/flex/mx
   width = "100%" height = "100%" minWidth = "500" minHeight = "500">

   <fx:Style source = "/com/tutorialspoint/client/Style.css" />
   <fx:Script>
      <![CDATA[
         private function applyRotateProperties():void {
            rotateEffect.play();
         }
      ]]>
   </fx:Script>

   <fx:Declarations>
      <s:Rotate3D id = "rotateEffect" target = "{imageFlex}"
         angleXFrom = "0.0" angleXTo = "{Number(rotateX.text)}"
         angleYFrom = "0.0" angleYTo = "{Number(rotateY.text)}"
         angleZFrom = "0.0" angleZTo = "{Number(rotateZ.text)}"
         />
   </fx:Declarations>

   <s:BorderContainer width = "630" height = "480" id = "mainContainer"
      styleName = "container">
      <s:VGroup width = "100%" height = "100%" gap = "50"
         horizontalAlign = "center" verticalAlign = "middle">
         <s:Label id = "lblHeader" text = "Effects Demonstration"
            fontSize = "40" color = "0x777777" styleName = "heading" />

         <s:Panel id = "rotate3DPanel" title = "Using Rotate3D Effect"
            width = "500" height = "300">
            <s:layout>
               <s:HorizontalLayout  gap = "10" verticalAlign = "middle"
                  horizontalAlign = "center" />
            </s:layout>

            <s:VGroup top = "10" left = "15">
               <s:HGroup verticalAlign = "middle">
                  <s:Label text = "Rotate By X:" width = "70" />
                  <s:TextInput id = "rotateX" text = "45.0" width = "50" />
               </s:HGroup>

               <s:HGroup verticalAlign = "middle">
                  <s:Label text = "Rotate By Y:" width = "70" />
                  <s:TextInput id = "rotateY" text = "15.0" width = "50" />
               </s:HGroup>

               <s:HGroup verticalAlign = "middle">
                  <s:Label text = "Rotate By Z:" width = "70" />
                  <s:TextInput id = "rotateZ" text = "15.0" width = "50" />
               </s:HGroup>

               <s:Button label = "Apply Properties"
                  click = "applyRotateProperties()" />
            </s:VGroup>

            <s:Image id = "imageFlex"
               source = "http://www.tutorialspoint.com/images/flex-mini.png"
               height = "200" width = "200" />
         </s:Panel>
      </s:VGroup>
   </s:BorderContainer>
</s:Application>

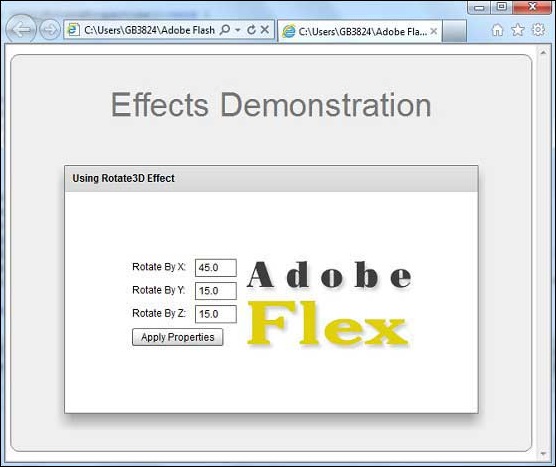

完成所有更改后，让我们像在 Flex - 创建应用程序一章中一样，以正常模式编译并运行应用程序。如果您的应用程序一切正常，它将产生以下结果:[ 在线试用 ]
