Three.js - 响应式设计
调整屏幕大小时，您可以观察到场景没有响应。使网页响应通常是指页面在不同尺寸的显示器(从台式机到平板电脑再到手机)上都能很好地显示。在本章中，您可以了解如何解决 Three.js 应用程序的一些基本问题。
当浏览器大小发生变化时自动调整输出大小
当您调整浏览器大小时，我们必须通知 Three.js 以了解 <canvas> 元素的宽度。对于相机，我们需要更新纵横比属性，该属性保存屏幕的纵横比，对于渲染器，我们需要更改其大小。
window.addEventListener('resize', () => {
// 更新显示宽度和高度
width = window.innerWidth
height = window.innerHeight
// 更新相机纵横比
camera.aspect = width / height
camera.updateProjectionMatrix()
// 更新渲染器
renderer.setSize(width, height)
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
renderer.render(scene, camera)
})
示例
上述代码为您的 Three.js 项目提供了响应能力。
resize-browser.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Three.js – Resizing browser</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: -applesystem, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu,
Cantarell, 'Open Sans', 'Helvetica Neue', sans-serif;
}
html,
body {
height: 100vh;
width: 100vw;
}
#threejs-container {
position: block;
width: 100%;
height: 100%;
}
</style>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/dat-gui/0.7.7/dat.gui.js"></script>
</head>
<body>
<div id="threejs-container"></div>
<script type="module">
// Adding responsiveness for Three.js
// 尺寸
let width = window.innerWidth
let height = window.innerHeight
const gui = new dat.GUI()
// 场景
const scene = new THREE.Scene()
scene.background = new THREE.Color(0x262626)
// 相机
const camera = new THREE.PerspectiveCamera(45, width / height, 0.1, 100)
camera.position.set(0, 0, 10)
// cube
const geometry = new THREE.BoxGeometry(2, 2, 2)
const material = new THREE.MeshBasicMaterial({
color: 0xffffff,
wireframe: true
})
const cube = new THREE.Mesh(geometry, material)
scene.add(cube)
// 响应性
window.addEventListener('resize', () => {
width = window.innerWidth
height = window.innerHeight
camera.aspect = width / height
camera.updateProjectionMatrix()
renderer.setSize(window.innerWidth, window.innerHeight)
renderer.render(scene, camera)
})
// 渲染器
const renderer = new THREE.WebGL1Renderer()
renderer.setSize(width, height)
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
// 动画
function animate() {
requestAnimationFrame(animate)
cube.rotation.x += 0.005
cube.rotation.y += 0.01
renderer.render(scene, camera)
}
// 渲染场景
const container = document.querySelector('#threejs-container')
container.append(renderer.domElement)
renderer.render(scene, camera)
animate()
</script>
</body>
</html>
输出

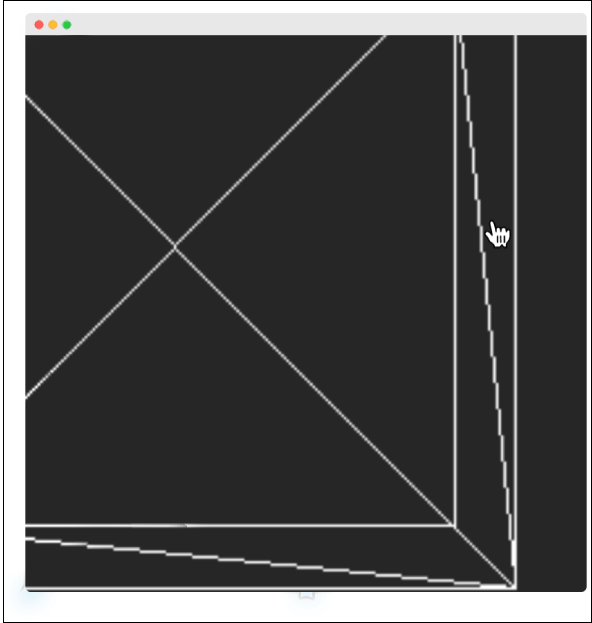

执行代码时，将产生以下输出 −
现在，调整浏览器大小。由于响应式设计，对象将始终重新定位在浏览器的中心。
抗锯齿

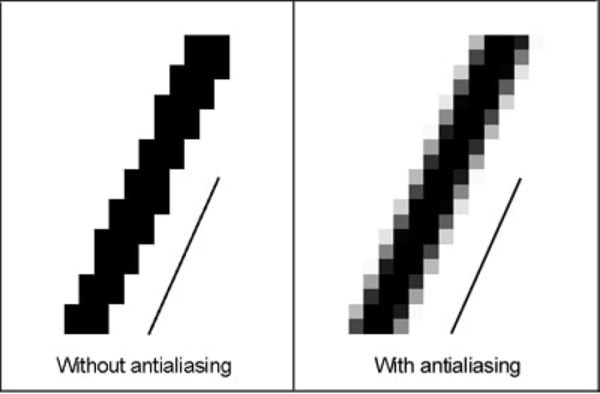

锯齿效果是指边缘和对象(使用像素渲染)上出现锯齿状边缘或"锯齿"(也称为阶梯状线条)。
示例
antialiasing.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Three.js - Anti-aliasing</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: -applesystem, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu,
Cantarell, 'Open Sans', 'Helvetica Neue', sans-serif;
}
html,
body {
height: 100vh;
width: 100vw;
}
#threejs-container {
position: block;
width: 100%;
height: 100%;
}
</style>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/dat-gui/0.7.7/dat.gui.js"></script>
</head>
<body>
<div id="threejs-container"></div>
<script type="module">
// Adding anti-aliasing to Three.js app for removing jaggies
// 尺寸
let width = window.innerWidth
let height = window.innerHeight
const gui = new dat.GUI()
// 场景
const scene = new THREE.Scene()
scene.background = new THREE.Color(0x262626)
// 相机
const camera = new THREE.PerspectiveCamera(45, width / height, 0.1, 100)
camera.position.set(0, 0, 10)
// cube
const geometry = new THREE.BoxGeometry(2, 2, 2)
const material = new THREE.MeshBasicMaterial({
color: 0xffffff,
wireframe: true
})
const cube = new THREE.Mesh(geometry, material)
scene.add(cube)
// 响应性
window.addEventListener('resize', () => {
width = window.innerWidth
height = window.innerHeight
camera.aspect = width / height
camera.updateProjectionMatrix()
renderer.setSize(window.innerWidth, window.innerHeight)
renderer.render(scene, camera)
})
// renderer - anti-aliasing
const renderer = new THREE.WebGLRenderer({ antialias: true })
renderer.physicallyCorrectLights = true
renderer.setSize(width, height)
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
// 动画
function animate() {
requestAnimationFrame(animate)
cube.rotation.x += 0.005
cube.rotation.y += 0.01
renderer.render(scene, camera)
}
// 渲染场景
const container = document.querySelector('#threejs-container')
container.append(renderer.domElement)
renderer.render(scene, camera)
animate()
</script>
</body>
</html>
输出
我们的 Hello cube 应用中的锯齿如下所示。
我们可以通过将 WebGLRenderer 的 antialias 属性设置为 true 来启用抗锯齿。默认情况下，它是 false。在这里，我们将 antialias 参数设置为 true −
const renderer = new WebGLRenderer({ antialias: true })
renderer.physicallyCorrectLights = true
抗锯齿后，它看起来很平滑，没有像下面这样的锯齿。
属性 physicalCorrectLights 告诉 Three.js 是否使用物理上正确的照明模式。默认为 false。将其设置为 true 有助于增加对象的细节。
