顺序电路的 VHDL 编程

本章介绍如何对顺序电路进行 VHDL 编程。

SR 锁存器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;

entity srl is
   port(r,s:in bit; q,qbar:buffer bit);
end srl;

architecture virat of srl is
   signal s1,r1:bit;
begin
   q<= s nand qbar;
   qbar<= r nand q;
end virat;

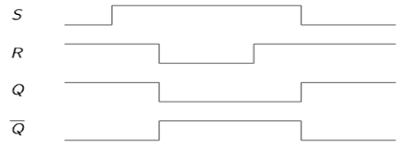

波形

SR 锁存器

D 锁存器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;

entity Dl is
   port(d:in bit; q,qbar:buffer bit);
end Dl;

architecture virat of Dl is
   signal s1,r1:bit;
begin
   q<= d nand qbar;
   qbar<= d nand q;
end virat;

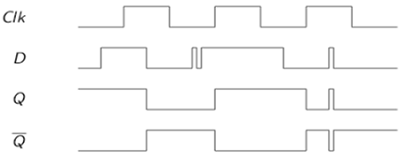

波形

D Latch

SR 触发器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;

entity srflip is
   port(r,s,clk:in bit; q,qbar:buffer bit);
end srflip;

architecture virat of srflip is
   signal s1,r1:bit;
begin
   s1<=s nand clk;
   r1<=r nand clk;
   q<= s1 nand qbar;
   qbar<= r1 nand q;
end virat;

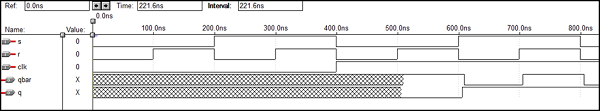

波形

SR 触发器

JK 触发器的 VHDL 代码

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity jk is
   port(
      j : in STD_LOGIC;
      k : in STD_LOGIC;
      clk : in STD_LOGIC;
      reset : in STD_LOGIC;
      q : out STD_LOGIC;
      qb : out STD_LOGIC
   );
end jk;

architecture virat of jk is
begin
   jkff : process (j,k,clk,reset) is
   variable m : std_logic := '0';

   begin
      if (reset = '1') then
         m : = '0';
      elsif (rising_edge (clk)) then
         if (j/ = k) then
            m : = j;
         elsif (j = '1' and k = '1') then
            m : = not m;
         end if;
      end if;

      q <= m;
      qb <= not m;
   end process jkff;
end virat;

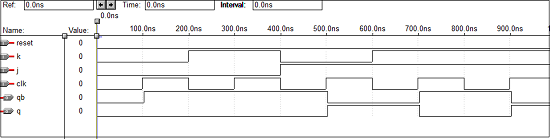

波形

JK 触发器

D 触发器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity dflip is
   port(d,clk:in bit; q,qbar:buffer bit);
end dflip;

architecture virat of dflip is
   signal d1,d2:bit;
begin
   d1<=d nand clk;
   d2<=(not d) nand clk;
   q<= d1 nand qbar;
   qbar<= d2 nand q;
end virat;

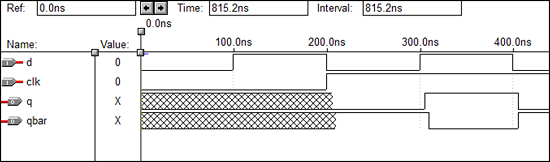

波形

D 触发器

T 触发器的 VHDL 代码

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity Toggle_flip_flop is
   port(
      t : in STD_LOGIC;
      clk : in STD_LOGIC;
      reset : in STD_LOGIC;
      dout : out STD_LOGIC
   );
end Toggle_flip_flop;

architecture virat of Toggle_flip_flop is
begin
   tff : process (t,clk,reset) is
   variable m : std_logic : = '0';

   begin
      if (reset = '1') then
         m : = '0';
      elsif (rising_edge (clk)) then
         if (t = '1') then
            m : = not m;
         end if;
      end if;
      dout < = m;
   end process tff;
end virat;

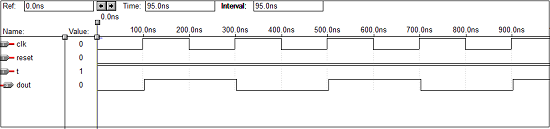

波形

T 触发器

4 位上升计数器的 VHDL 代码

library IEEE;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;

entity counter is
   port(Clock, CLR : in std_logic;
      Q : out std_logic_vector(3 downto 0)
   );
end counter;

architecture virat of counter is
   signal tmp: std_logic_vector(3 downto 0);
begin
   process (Clock, CLR)

   begin
      if (CLR = '1') then
         tmp < = "0000";
      elsif (Clock'event and Clock = '1') then
         mp <= tmp + 1;
      end if;
   end process;
   Q <= tmp;
end virat;

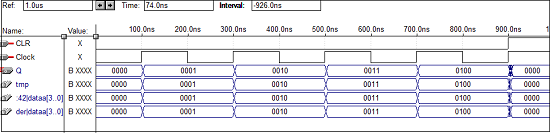

波形

4 位递增计数器

4 位递减计数器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;

entity dcounter is
   port(Clock, CLR : in std_logic;
      Q : out std_logic_vector(3 downto 0));
end dcounter;

architecture virat of dcounter is
   signal tmp: std_logic_vector(3 downto 0);

begin
   process (Clock, CLR)
   begin
      if (CLR = '1') then
         tmp <= "1111";
      elsif (Clock'event and Clock = '1') then
         tmp <= tmp - 1;
      end if;
   end process;
   Q <= tmp;
end virat;

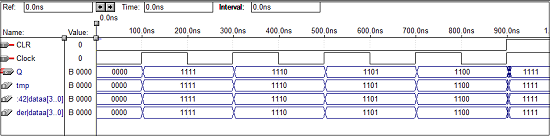

波形

4 位减计数器
