VHDL 编程组合电路

本章讲解组合电路的 VHDL 编程。

半加器的 VHDL 代码

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity half_adder is
   port(a,b:in bit; sum,carry:out bit);
end half_adder;

architecture data of half_adder is
begin
   sum<= a xor b;
   carry <= a and b;
end data;

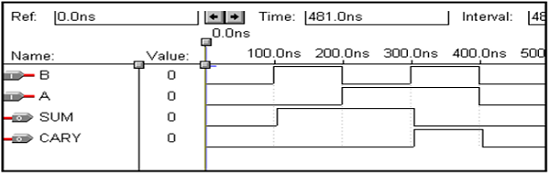

波形

Half-Adder

全加器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity full_adder is port(a,b,c:in bit; sum,carry:out bit);
end full_adder;

architecture data of full_adder is
begin
   sum<= a xor b xor c;
   carry <= ((a and b) or (b and c) or (a and c));
end data;

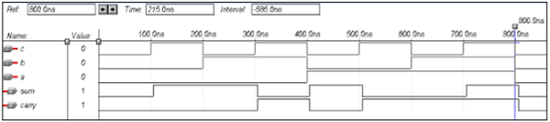

波形

全加器

半减器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity half_sub is
   port(a,c:in bit; d,b:out bit);
end half_sub;

architecture data of half_sub is
begin
   d<= a xor c;
   b<= (a and (not c));
end data;

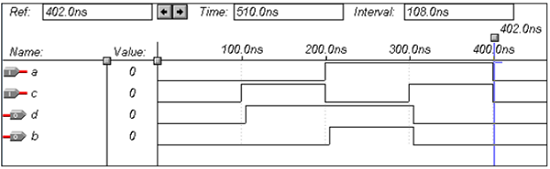

波形

Half-Subtractor

全减法器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity full_sub is
   port(a,b,c:in bit; sub,borrow:out bit);
end full_sub;

architecture data of full_sub is
begin
   sub<= a xor b xor c;
   borrow <= ((b xor c) and (not a)) or (b and c);
end data;

波形

Full Subtractor

多路复用器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity mux is
   port(S1,S0,D0,D1,D2,D3:in bit; Y:out bit);
end mux;

architecture data of mux is
begin
   Y<= (not S0 and not S1 and D0) or
      (S0 and not S1 and D1) or
      (not S0 and S1 and D2) or
      (S0 and S1 and D3);
end data;

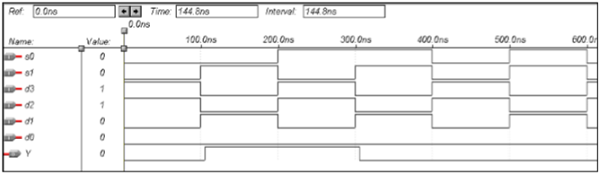

波形

多路复用器

多路分解器的 VHDL 代码

Library ieee;
use ieee.std_logic_1164.all;

entity demux is
   port(S1,S0,D:in bit; Y0,Y1,Y2,Y3:out bit);
end demux;

architecture data of demux is
begin
   Y0<=  ((Not S0) and (Not S1) and D);
   Y1<=  ((Not S0) and S1 and D);
   Y2<=  (S0 and (Not S1) and D);
   Y3<=  (S0 and S1 and D);
end data;

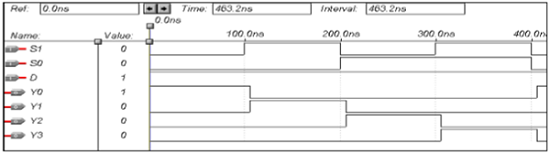

波形

解复用器

8 x 3 编码器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;

entity enc is
   port(i0,i1,i2,i3,i4,i5,i6,i7:in bit; o0,o1,o2: out bit);
end enc;

architecture vcgandhi of enc is
begin
   o0<=i4 or i5 or i6 or i7;
   o1<=i2 or i3 or i6 or i7;
   o2<=i1 or i3 or i5 or i7;
end vcgandhi;

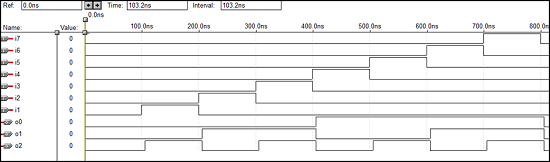

波形

Encoder

3 x 8 解码器的 VHDL 代码

library ieee;
use ieee.std_logic_1164.all;

entity dec is
   port(i0,i1,i2:in bit; o0,o1,o2,o3,o4,o5,o6,o7: out bit);
end dec;

architecture vcgandhi of dec is
begin
   o0<=(not i0) and (not i1) and (not i2);
   o1<=(not i0) and (not i1) and i2;
   o2<=(not i0) and i1 and (not i2);
   o3<=(not i0) and i1 and i2;
   o4<=i0 and (not i1) and (not i2);
   o5<=i0 and (not i1) and i2;
   o6<=i0 and i1 and (not i2);
   o7<=i0 and i1 and i2;
end vcgandhi;

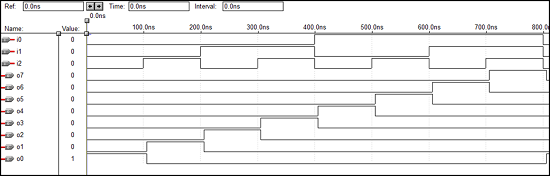

波形

解码器

VHDL 代码 – 4 位并行加法器

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity pa is
   port(a : in STD_LOGIC_VECTOR(3 downto 0);
      b : in STD_LOGIC_VECTOR(3 downto 0);
      ca : out STD_LOGIC;
      sum : out STD_LOGIC_VECTOR(3 downto 0)
   );
end pa;

architecture vcgandhi of pa is
   Component fa is
      port (a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         sum : out STD_LOGIC;
         ca : out STD_LOGIC
      );
   end component;
   signal s : std_logic_vector (2 downto 0);
   signal temp: std_logic;
begin
   temp<='0';
   u0 : fa port map (a(0),b(0),temp,sum(0),s(0));
   u1 : fa port map (a(1),b(1),s(0),sum(1),s(1));
   u2 : fa port map (a(2),b(2),s(1),sum(2),s(2));
   ue : fa port map (a(3),b(3),s(2),sum(3),ca);
end vcgandhi;

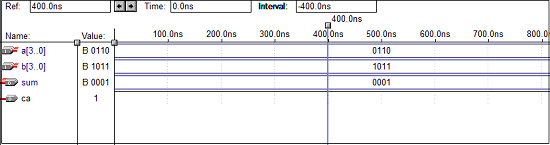

波形

并行加法器

VHDL 代码 – 4 位奇偶校验器

library ieee;
use ieee.std_logic_1164.all;

entity parity_checker is
   port (a0,a1,a2,a3 : in std_logic;
      p : out std_logic);
end parity_checker;

architecture vcgandhi of parity_checker is
begin
   p <= (((a0 xor a1) xor a2) xor a3);
end vcgandhi;

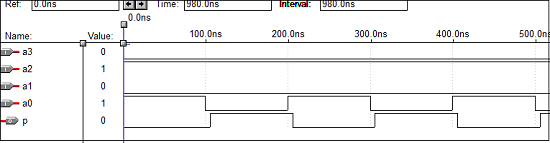

波形

奇偶校验器

VHDL 代码 – 4 位奇偶校验生成器

library ieee;
use ieee.std_logic_1164.all;

entity paritygen is
   port (a0, a1, a2, a3: in std_logic; p_odd, p_even: out std_logic);
end paritygen;

architecture vcgandhi of paritygen is
begin
   process (a0, a1, a2, a3)

   if (a0 ='0' and a1 ='0' and a2 ='0' and a3 =’0’)
      then odd_out <= "0";
      even_out <= "0";
   else
      p_odd <= (((a0 xor a1) xor a2) xor a3);
      p_even <= not(((a0 xor a1) xor a2) xor a3);
end vcgandhi

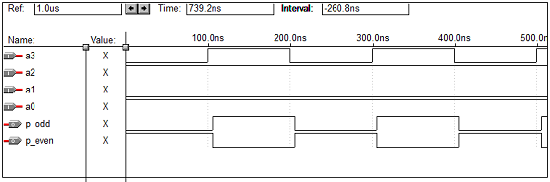

波形

奇偶校验发生器
