iOS - 视图转换

视图转换的使用

视图转换是在另一个视图上添加一个视图的有效方法，具有适当的过渡动画效果。

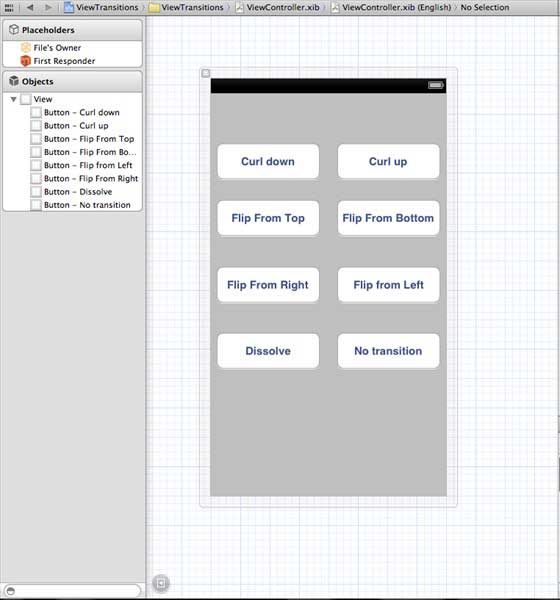

更新 ViewController.xib 如下 −

为在 xib 中创建的按钮创建操作。

更新 ViewController.h

在 ViewController 类中声明两个视图实例。 ViewController.h 文件在创建动作后将如下所示 −

实例


#import <UIKit/UIKit.h>

@interface ViewController : UIViewController {
   UIView *view1;
   UIView *view2;
}

-(IBAction)flipFromLeft:(id)sender;
-(IBAction)flipFromRight:(id)sender;
-(IBAction)flipFromTop:(id)sender;
-(IBAction)flipFromBottom:(id)sender;
-(IBAction)curlUp:(id)sender;
-(IBAction)curlDown:(id)sender;
-(IBAction)dissolve:(id)sender;
-(IBAction)noTransition:(id)sender;

@end

更新 ViewController.m

我们将添加一个自定义方法 setUpView 来初始化视图。我们还创建了另一个方法 doTransitionWithType: 来创建从 view1 到 view2 的过渡，反之亦然。然后我们将实现我们之前创建的操作方法，然后使用转换类型调用 doTransitionWithType: 方法。更新后的 ViewController.m 如下 −

实例


#import "ViewController.h"

@interface ViewController ()

@end

@implementation ViewController

- (void)viewDidLoad {
   [super viewDidLoad];
   [self setUpView];
   // Do any additional setup after loading the view, typically from a nib.
}

-(void)setUpView {
   view1 = [[UIView alloc]initWithFrame:self.view.frame];
   view1.backgroundColor = [UIColor lightTextColor];
   view2 = [[UIView alloc]initWithFrame:self.view.frame];
   view2.backgroundColor = [UIColor orangeColor];
   [self.view addSubview:view1];
   [self.view sendSubviewToBack:view1];
}

-(void)doTransitionWithType:(UIViewAnimationTransition)animationTransitionType {
   if ([[self.view subviews] containsObject:view2 ]) {
      [UIView transitionFromView:view2
      toView:view1
      duration:2
      options:animationTransitionType
      completion:^(BOOL finished) {
         [view2 removeFromSuperview];
      }];
      [self.view addSubview:view1];
      [self.view sendSubviewToBack:view1];
   } else {
      [UIView transitionFromView:view1
      toView:view2
      duration:2
      options:animationTransitionType
      completion:^(BOOL finished) {
         [view1 removeFromSuperview];
      }];
      [self.view addSubview:view2];
      [self.view sendSubviewToBack:view2];
   }
}

-(IBAction)flipFromLeft:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionFlipFromLeft];
}

-(IBAction)flipFromRight:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionFlipFromRight];
}

-(IBAction)flipFromTop:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionFlipFromTop];
}

-(IBAction)flipFromBottom:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionFlipFromBottom];
}

-(IBAction)curlUp:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionCurlUp];
}

-(IBAction)curlDown:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionCurlDown];
}

-(IBAction)dissolve:(id)sender {
   [self doTransitionWithType:UIViewAnimationOptionTransitionCrossDissolve];
}

-(IBAction)noTransition:(id)sender{
   [self doTransitionWithType:UIViewAnimationOptionTransitionNone];
}

- (void)didReceiveMemoryWarning {
   [super didReceiveMemoryWarning];
   // Dispose of any resources that can be recreated.
}
@end
