Spring Batch - XML 到 MySQL

在本章中，我们将创建一个使用 XML Reader 和 MySQL Writer 的 Spring Batch 应用程序。

Reader − 我们在应用程序中使用的阅读器是 StaxEventItemReader，用于从 XML 文档中读取数据。

以下是我们在此应用程序中使用的输入 XML 文档。 该文档包含指定详细信息的数据记录，例如教程 ID、教程作者、教程标题、提交日期、教程图标和教程描述。

<?xml version="1.0" encoding="UTF-8"?>
<tutorials>
   <tutorial>
      <tutorial_id>1001</tutorial_id>
      <tutorial_author>Sanjay</tutorial_author>
      <tutorial_title>Learn Java</tutorial_title>
      <submission_date>06-05-2007</submission_date>
      <tutorial_icon>/java/images/java-minilogo.jpg</tutorial_icon>
      <tutorial_description>Java is a high-level programming language originally
         developed by Sun Microsystems and released in 1995.
         Java runs on a variety of platforms.
         This tutorial gives a complete understanding of Java.');</tutorial_description>
   </tutorial>

   <tutorial>
      <tutorial_id>1002</tutorial_id>
      <tutorial_author>Abdul S</tutorial_author>
      <tutorial_title>Learn MySQL</tutorial_title>
      <submission_date>19-04-2007</submission_date>
      <tutorial_icon>/mysql/images/mysql-minilogo.jpg</tutorial_icon>
      <tutorial_description>MySQL is the most popular
         Open Source Relational SQL database management system.
         MySQL is one of the best RDBMS being used for developing web-based software applications.
         This tutorial will give you quick start with MySQL
         and make you comfortable with MySQL programming.</tutorial_description>
   </tutorial>

   <tutorial>
      <tutorial_id>1003</tutorial_id>
      <tutorial_author>Krishna Kasyap</tutorial_author>
      <tutorial_title>Learn JavaFX</tutorial_title>
      <submission_date>06-07-2017</submission_date>
      <tutorial_icon>/javafx/images/javafx-minilogo.jpg</tutorial_icon>
      <tutorial_description>JavaFX is a Java library used to build Rich Internet Applications.
         The applications developed using JavaFX can run on various devices
         such as Desktop Computers, Mobile Phones, TVs, Tablets, etc.
         This tutorial, discusses all the necessary elements of JavaFX that are required
         to develop effective Rich Internet Applications</tutorial_description>
   </tutorial>
</tutorials>

Writer − 我们在应用程序中使用的 writer 是 JdbcBatchItemWriter，用于将数据写入 MySQL 数据库。 假设我们在名为 "details" 的数据库中的 MySQL 中创建了一个表。

CREATE TABLE details.TUTORIALS(
   tutorial_id int(10) NOT NULL,
   tutorial_author VARCHAR(20),
   tutorial_title VARCHAR(50),
   submission_date VARCHAR(20),
   tutorial_icon VARCHAR(200),
   tutorial_description VARCHAR(1000)
);

Processor − 我们在应用程序中使用的处理器是一个自定义处理器，它将每条记录的数据写入 PDF 文档。

在批处理中，如果读取了 "n" 条记录或数据元素，那么对于每条记录，它都会读取数据，对其进行处理，然后将数据写入 Writer 中。 为了处理数据，它在传递的处理器上进行中继。 在这种情况下，在自定义处理器类中，我们编写了代码来加载特定的 PDF 文档、创建新页面、以表格格式将数据项写入 PDF。

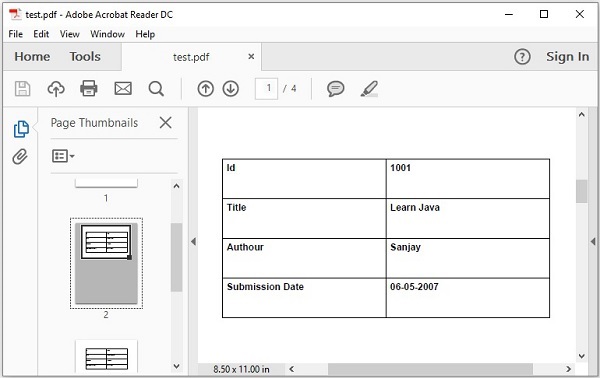

最后，如果您执行此应用程序，它会从 XML 文档中读取所有数据项，将它们存储在 MySQL 数据库中，并将它们打印到给定 PDF 文档中的各个页面中。

jobConfig.xml

以下是我们的示例 Spring Batch 应用程序的配置文件。 在此文件中，我们将定义作业和步骤。 除了这些之外，我们还为 ItemReader、ItemProcessor 和 ItemWriter 定义了 bean。 （在这里，我们将它们与各自的类相关联，并传递所需属性的值来配置它们。）

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:batch = "http://www.springframework.org/schema/batch"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns:util = "http://www.springframework.org/schema/util"
   xsi:schemaLocation = "http://www.springframework.org/schema/batch

      http://www.springframework.org/schema/batch/spring-batch-2.2.xsd
      http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
      http://www.springframework.org/schema/util
      http://www.springframework.org/schema/util/spring-util-3.0.xsd ">

   <import resource = "../jobs/context.xml" />

   <bean id = "itemProcessor" class = "CustomItemProcessor" />
   <batch:job id = "helloWorldJob">
      <batch:step id = "step1">
         <batch:tasklet>
            <batch:chunk reader = "xmlItemReader" writer = "mysqlItemWriter" processor = "itemProcessor">
            </batch:chunk>
         </batch:tasklet>
      </batch:step>
   </batch:job>

   <bean id = "xmlItemReader"
      class = "org.springframework.batch.item.xml.StaxEventItemReader">
      <property name = "fragmentRootElementName" value = "tutorial" />
      <property name = "resource" value = "classpath:resources/tutorial.xml" />
      <property name = "unmarshaller" ref = "customUnMarshaller" />
   </bean>

   <bean id = "customUnMarshaller" class = "org.springframework.oxm.xstream.XStreamMarshaller">
      <property name = "aliases">
         <util:map id = "aliases">
            <entry key = "tutorial" value = "Tutorial" />
         </util:map>
      </property>
   </bean>
   <bean id = "mysqlItemWriter" class = "org.springframework.batch.item.database.JdbcBatchItemWriter">
      <property name = "dataSource" ref = "dataSource" />
      <property name = "sql">
         <value>
            <![CDATA[insert into details.tutorials (tutorial_id, tutorial_author, tutorial_title,
               submission_date, tutorial_icon, tutorial_description)
               values (:tutorial_id, :tutorial_author, :tutorial_title, :submission_date,
               :tutorial_icon, :tutorial_description);]]>
         </value>
      </property>

      <property name = "itemSqlParameterSourceProvider">
         <bean class = "org.springframework.batch.item.database.BeanPropertyItemSqlParameterSourceProvider" />
      </property>
   </bean>
</beans>

Context.xml

以下是我们 Spring Batch 应用程序的 context.xml。 在这个文件中，我们将定义像作业存储库、作业启动器和事务管理器这样的 bean。

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:jdbc = "http://www.springframework.org/schema/jdbc"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
      http://www.springframework.org/schema/jdbc
      http://www.springframework.org/schema/jdbc/spring-jdbc-3.2.xsd">

   <!-- stored job-meta in database -->
   <bean id = "jobRepository"
      class = "org.springframework.batch.core.repository.support.JobRepositoryFactoryBean">
      <property name = "dataSource" ref = "dataSource" />
      <property name = "transactionManager" ref = "transactionManager" />
      <property name = "databaseType" value = "mysql" />
   </bean>

   <bean id = "transactionManager"
   class = "org.springframework.batch.support.transaction.ResourcelessTransactionMana ger" />
   <bean id = "jobLauncher"
      class = "org.springframework.batch.core.launch.support.SimpleJobLauncher">
      <property name = "jobRepository" ref = "jobRepository" />
   </bean>

   <!-- connect to MySQL database -->
   <bean id = "dataSource"
      class = "org.springframework.jdbc.datasource.DriverManagerDataSource">
      <property name = "driverClassName" value = "com.mysql.jdbc.Driver" />
      <property name = "url" value = "jdbc:mysql://localhost:3306/details" />
      <property name = "username" value = "myuser" />
      <property name = "password" value = "password" />
   </bean>

   <!-- create job-meta tables automatically -->
   <jdbc:initialize-database data-source = "dataSource">
      <jdbc:script location = "org/springframework/batch/core/schema-drop-mysql.sql"/>
      <jdbc:script location = "org/springframework/batch/core/schema-mysql.sql"/>
   </jdbc:initialize-database>
</beans>

CustomItemProcessor.java

以下是 处理器 类。 在这个类中，我们编写应用程序中的处理代码。 在这里，我们正在加载一个 PDF 文档，创建一个新页面，创建一个表格，并在表格中为每条记录插入以下值:教程 ID、教程名称、作者、提交日期。

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
import org.apache.pdfbox.pdmodel.font.PDType1Font;
import org.springframework.batch.item.ItemProcessor;

public class CustomItemProcessor implements ItemProcessor<Tutorial, Tutorial> {

   public static void drawTable(PDPage page, PDPageContentStream contentStream,
      float y, float margin, String[][] content) throws IOException {
      final int rows = content.length;
      final int cols = content[0].length;
      final float rowHeight = 50;
      final float tableWidth = page.getMediaBox().getWidth()-(2*margin);
      final float tableHeight = rowHeight * rows;
      final float colWidth = tableWidth/(float)cols;
      final float cellMargin=5f;

      // draw the rows
      float nexty = y ;
      for (int i = 0; i <= rows; i++) {
         contentStream.drawLine(margin,nexty,margin+tableWidth,nexty);
         nexty-= rowHeight;
      }

      //draw the columns
      float nextx = margin;
      for (int i = 0; i <= cols; i++) {
         contentStream.drawLine(nextx,y,nextx,y-tableHeight);
         nextx += colWidth;
      }

      // now add the text
      contentStream.setFont(PDType1Font.HELVETICA_BOLD,12);

      float textx = margin+cellMargin;
      float texty = y-15;
      for(int i = 0; i < content.length; i++){
         for(int j = 0 ; j < content[i].length; j++){
            String text = content[i][j];
            contentStream.beginText();
            contentStream.moveTextPositionByAmount(textx,texty);
            contentStream.drawString(text);
            contentStream.endText();
            textx += colWidth;
         }

         texty-=rowHeight;
         textx = margin+cellMargin;
      }
   }

   @Override
   public Tutorial process(Tutorial item) throws Exception {
      System.out.println("Processing..." + item);

      // Creating PDF document object
      PDDocument doc = PDDocument.load(new File("C:/Examples/test.pdf"));

      // Creating a blank page
      PDPage page = new PDPage();
      doc.addPage( page );
      PDPageContentStream contentStream =  new PDPageContentStream(doc, page);

      String[][] content = {{"Id",""+item.getTutorial_id()},
      {"Title", item.getTutorial_title()},
      {"Authour", item.getTutorial_author()},
      {"Submission Date", item.getSubmission_date()}} ;
      drawTable(page, contentStream, 700, 100, content);

      contentStream.close();
      doc.save("C:/Examples/test.pdf" );
      System.out.println("Hello");
      return item;
   }
}

TutorialFieldSetMapper.java

以下是将数据设置到 Tutorial 类的 ReportFieldSetMapper 类。

import org.springframework.batch.item.file.mapping.FieldSetMapper;
import org.springframework.batch.item.file.transform.FieldSet;
import org.springframework.validation.BindException;

public class TutorialFieldSetMapper implements FieldSetMapper<Tutorial> {

   @Override
   public Tutorial mapFieldSet(FieldSet fieldSet) throws BindException {
      // instantiating the Tutorial class
      Tutorial tutorial = new Tutorial();

      // Setting the fields from XML
      tutorial.setTutorial_id(fieldSet.readInt(0));
      tutorial.setTutorial_title(fieldSet.readString(1));
      tutorial.setTutorial_author(fieldSet.readString(2));
      tutorial.setTutorial_icon(fieldSet.readString(3));
      tutorial.setTutorial_description(fieldSet.readString(4));
      return tutorial;
   }
}

Tutorial.java

以下是 Tutorial 类。 它是一个带有 setter 和 getter 方法的简单类。

public class Tutorial {
   private int tutorial_id;
   private String tutorial_author;
   private String tutorial_title;
   private String submission_date;
   private String tutorial_icon;
   private String tutorial_description;

   @Override
   public String toString() {
      return " [id=" + tutorial_id + ", author=" + tutorial_author
         + ", title=" + tutorial_title + ", date=" + submission_date + ", icon ="
         +tutorial_icon +", description = "+tutorial_description+"]";
   }

   public int getTutorial_id() {
      return tutorial_id;
   }

   public void setTutorial_id(int tutorial_id) {
      this.tutorial_id = tutorial_id;
   }

   public String getTutorial_author() {
      return tutorial_author;
   }

   public void setTutorial_author(String tutorial_author) {
      this.tutorial_author = tutorial_author;
   }

   public String getTutorial_title() {
      return tutorial_title;
   }

   public void setTutorial_title(String tutorial_title) {
      this.tutorial_title = tutorial_title;
   }

   public String getSubmission_date() {
      return submission_date;
   }

   public void setSubmission_date(String submission_date) {
      this.submission_date = submission_date;
   }

   public String getTutorial_icon() {
      return tutorial_icon;
   }

   public void setTutorial_icon(String tutorial_icon) {
      this.tutorial_icon = tutorial_icon;
   }

   public String getTutorial_description() {
      return tutorial_description;
   }

   public void setTutorial_description(String tutorial_description) {
      this.tutorial_description = tutorial_description;
   }
}

App.java

以下是启动批处理的代码。 在本课程中，我们将通过运行 JobLauncher 来启动批处理应用程序。

public class App {
   public static void main(String[] args) throws Exception {
      String[] springConfig  = {    "jobs/job_hello_world.xml" };

      // Creating the application context object
      ApplicationContext context = new ClassPathXmlApplicationContext(springConfig);

      // Creating the job launcher
      JobLauncher jobLauncher = (JobLauncher) context.getBean("jobLauncher");

      // Creating the job
      Job job = (Job) context.getBean("helloWorldJob");

      // Executing the JOB
      JobExecution execution = jobLauncher.run(job, new JobParameters());
      System.out.println("Exit Status : " + execution.getStatus());
   }
}

在执行此应用程序时，它将产生以下输出。

May 05, 2017 4:39:22 PM org.springframework.context.support.ClassPathXmlApplicationContext
prepareRefresh
INFO: Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@306a30c7:
startup date [Fri May 05 16:39:22 IST 2017]; root of context hierarchy
May 05, 2017 4:39:23 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
May 05, 2017 4:39:32 PM org.springframework.batch.core.job.SimpleStepHandler handleStep
INFO: Executing step: [step1]
Processing... [id=1001, author=Sanjay, title=Learn Java, date=06-05-2007,
icon =/java/images/java-mini-logo.jpg,
description = Java is a high-level programming language originally developed by Sun Microsystems
and released in 1995. Java runs on a variety of platforms.
This tutorial gives a complete understanding of Java.');]
Hello
Processing.. [id=1002, author=Abdul S, title=Learn MySQL, date=19-04-2007,
icon =/mysql/images/mysql-mini-logo.jpg,
description = MySQL is the most popular Open Source Relational SQL database management system.
MySQL is one of the best RDBMS being used for developing web-based software applications.
This tutorial will give you quick start with MySQL and make you comfortable with MySQL programming.]
Hello
Processing... [id=1003, author=Krishna Kasyap, title=Learn JavaFX, date=06-072017,
icon =/javafx/images/javafx-mini-logo.jpg,
description = JavaFX is a Java library used to build Rich Internet Applications.
The applications developed using JavaFX can run on various devices
such as Desktop Computers, Mobile Phones, TVs, Tablets, etc.
This tutorial, discusses all the necessary elements of JavaFX
that are required to develop effective Rich Internet Applications]
Hello
May 05, 2017 4:39:36 PM org.springframework.batch.core.launch.support.SimpleJobLauncher run
INFO: Job: [FlowJob: [name=helloWorldJob]] completed with the following parameters: [{}]
and the following status: [COMPLETED]
Exit Status : COMPLETED

如果您验证数据库中的 details.tutorial 表，它将显示以下输出 −

这将生成一个 PDF，每个页面上都有记录，如下所示。
