JBoss Fuse - AMQ 与 Camel

在本章中，我们将学习 ActiveMQ 如何与 Camel 配合使用的基础知识。

配置 ActiveMQ 组件

在代码中使用 ActiveMQ 队列或主题之前，我们必须配置 ActiveMQComponent。ActiveMQComponent 的最低配置可以按照以下程序所示完成 −

<bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
   <property name = "brokerURL" value = "tcp://localhost:61616"/>
   <property name = "userName" value = "admin"/>
   <property name = "password" value = "admin"/>
</bean>


• brokerURL − 指定 AMQ Broker 的主机和端口。

• username − 指定用于连接到 AMQ Broker 的用户名。

• password − 指定用于连接到 AMQ Broker 的密码。

连接到队列

现在我们已经配置了 ActiveMQComponent，我们可以在 CamelContext 中将其用作端点。

我们将使用以下格式的 AMQ 端点 −

Activemq:[queue|topic]:[queueName|topicName]

将消息写入 AMQ

<?xml version = "1.0" encoding="UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://camel.apache.org/schema/spring
   http://camel.apache.org/schema/spring/camel-spring.xsd">

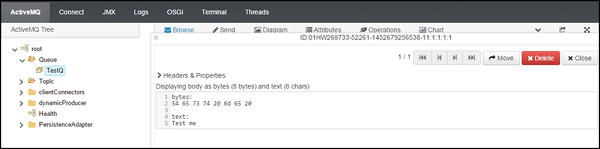

在 Fuse 容器中部署此包后，您应该能够看到发布到 AMQ 的消息，这些消息作为文件放置在 D:/src/data 中。

输入

D:/src/data/input.txt

Test me

输出

从 AMQ 读取

<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://camel.apache.org/schema/spring
   http://camel.apache.org/schema/spring/camel-spring.xsd">

   <camelContext xmlns = "http://camel.apache.org/schema/spring">
      <!-- here is a sample which processes the input files
         (leaving them in place - see the 'noop' flag)
          then performs content based routing on the message using XPath -->

      <route>
         <from uri = "activemq:queue:TestQ"/>
         <to uri = "file:///d:/src"/>
      </route>
   </camelContext>

   <bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
      <property name = "brokerURL" value = "tcp://localhost:61616"/>
      <property name = "userName" value = "admin"/>
      <property name = "password" value = "admin"/>
   </bean>

</beans>


输入

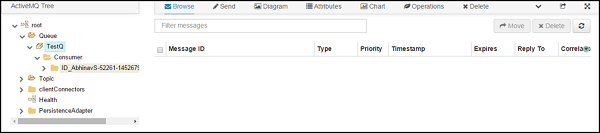

部署此包后，您应该会看到在 D:/src 中生成一个文件，并且消息已被使用。还应该显示该队列的消费者。

输出

D:/src

Test me

写入主题

<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://camel.apache.org/schema/spring
   http://camel.apache.org/schema/spring/camel-spring.xsd">

   <camelContext xmlns = "http://camel.apache.org/schema/spring">
      <!-- here is a sample which processes the input files
         (leaving them in place - see the 'noop' flag)
          then performs content based routing on the message using XPath -->

      <route>
         <from uri = "file:///d:/src"/>
         <to uri = "activemq:topic:TestTopic" />
      </route>
   </camelContext>

   <bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
      <property name = "brokerURL" value = "tcp://localhost:61616"/>
      <property name = "userName" value = "admin"/>
      <property name = "password" value = "admin"/>
   </bean>

</beans>


从主题读取

<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://camel.apache.org/schema/spring
   http://camel.apache.org/schema/spring/camel-spring.xsd">

   <camelContext xmlns = "http://camel.apache.org/schema/spring">
      <!-- here is a sample which processes the input files
         (leaving them in place - see the 'noop' flag)
         then performs content based routing on the message using XPath -->

      <route>
         <from uri = "activemq:topic:TestTopic"/>
         <to uri = "file:///d:/src2"/>
      </route>
   </camelContext>

   <bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
      <property name = "brokerURL" value="tcp://localhost:61616"/>
      <property name = "userName" value = "admin"/>
      <property name = "password" value = "admin"/>
   </bean>

</beans>


输入

D:/src/file1.xml

<order>
   <data>
      <value>value1</value>
   </data>
</order>

<order>
   <data>
      <value>value2</value>
   </data>
</order>

<order>
   <data>
      <value>value3</value>
   </data>
</order>


输出

D:/src/

<order>
   <data>
      <value>value1</value>
   </data>
</order>

<order>
   <data>
      <value>value2</value>
   </data>
</order>

<order>
   <data>
      <value>value3</value>
   </data>
</order>
