报告字段

报告字段是元素，表示数据源和报告模板之间的数据映射。字段可以在报告表达式中组合以获得所需的输出。报告模板可以包含零个或多个 <field> 元素。声明报告字段时，数据源应提供与报告模板中定义的所有字段相对应的数据。

字段声明

字段声明如下所示 −

<field name = "FieldName" class = "java.lang.String"/>

name 属性

<field> 元素的 name 属性是必需的。它通过名称引用报告表达式中的字段。

class 属性

class 属性指定字段值的类名。其默认值为 java.lang.String。可以在运行时将其更改为任何可用的类。无论报告字段的类型如何，引擎都会负责在使用 $F{} 标记的报告表达式中进行转换，因此无需手动转换。

fieldDesciption

<fieldDesciption> 元素是可选元素。这在实现自定义数据源时非常有用。例如，我们可以存储一个键或一些信息，通过它们我们可以在运行时从自定义数据源检索字段的值。通过使用 <fieldDesciption>元素而不是字段名称，您可以在从数据源检索字段值时轻松克服字段命名约定的限制。

以下是我们现有 JRXML 文件中的一段代码(报告设计章)。在这里，我们可以看到 name、class 和 fieldDescription 元素的用法。

<field name = "country" class = "java.lang.String">
   <fieldDescription><![CDATA[country]]></fieldDescription>
</field>

<field name = "name" class = "java.lang.String">
   <fieldDescription><![CDATA[name]]></fieldDescription>
</field>

排序字段

当需要数据排序而数据源实现不支持时(例如 CSV 数据源)，JasperReports 支持基于内存字段的数据源排序。可以使用报告模板中的一个或多个 <sortField> 元素进行排序。

如果指定了至少一个排序字段，则在报告填充过程中，数据源将传递给 JRSortableDataSource 实例。这反过来会从数据源中获取所有记录，根据指定的字段在内存中执行排序，并替换原始数据源。

排序字段名称应与报告字段名称相同。用于排序的字段应具有实现 java.util.Comparable 的类型。除 java.lang.String 类型的字段外，所有字段均执行自然顺序排序(对于 String 类型，使用与报告填充语言环境相对应的排序器)。当指定多个排序字段时，将使用字段作为排序键按照它们在报告模板中出现的顺序进行排序。以下示例演示了排序功能。

已排序的报告示例

让我们将 <sortField> 元素添加到我们现有的报告模板(报告设计章)。让我们按降序对字段 country 进行排序。修改后的报告模板(jasper_report_template.jrxml)如下。将其保存到 C:\tools\jasperreports-5.0.1\test 目录 −

<?xml version = "1.0"?>
<!DOCTYPE jasperReport PUBLIC
   "//JasperReports//DTD Report Design//EN"
   "http://jasperreports.sourceforge.net/dtds/jasperreport.dtd">

<jasperReport xmlns = "http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi =
   "http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation =
   "http://jasperreports.sourceforge.net/jasperreports
   http://jasperreports.sourceforge.net/xsd/jasperreport.xsd"
   name = "jasper_report_template" pageWidth = "595" pageHeight = "842"
   columnWidth = "515" leftMargin = "40" rightMargin = "40"
   topMargin = "50" bottomMargin = "50">

   <parameter name = "ReportTitle" class = "java.lang.String"/>
   <parameter name = "Author" class = "java.lang.String"/>

   <queryString>
      <![CDATA[]]>
   </queryString>

   <field name = "country" class = "java.lang.String">
      <fieldDescription><![CDATA[country]]></fieldDescription>
   </field>

   <field name = "name" class = "java.lang.String">
      <fieldDescription><![CDATA[name]]></fieldDescription>
   </field>

   <sortField name = "country" order = "Descending"/>
   <sortField name = "name"/>

   <title>
      <band height = "70">

         <line>
            <reportElement x = "0" y = "0" width = "515" height = "1"/>
         </line>

         <textField isBlankWhenNull = "true" bookmarkLevel = "1">
            <reportElement x = "0" y = "10" width = "515" height = "30"/>

            <textElement textAlignment = "Center">
               <font size = "22"/>
            </textElement>

            <textFieldExpression class = "java.lang.String">
               <![CDATA[$P{ReportTitle}]]>
            </textFieldExpression>

            <anchorNameExpression>
               <![CDATA["Title"]]>
            </anchorNameExpression>
         </textField>

         <textField isBlankWhenNull = "true">
            <reportElement  x = "0" y = "40" width = "515" height = "20"/>

            <textElement textAlignment = "Center">
               <font size = "10"/>
            </textElement>

            <textFieldExpression class = "java.lang.String">
               <![CDATA[$P{Author}]]>
            </textFieldExpression>

         </textField>

      </band>
   </title>

   <columnHeader>
      <band height = "23">

         <staticText>
            <reportElement mode = "Opaque" x = "0" y = "3" width = "535" height = "15"
               backcolor = "#70A9A9" />

            <box>
               <bottomPen lineWidth = "1.0" lineColor = "#CCCCCC" />
            </box>

            <textElement />

            <text>
               <![CDATA[]]>
            </text>
         </staticText>

         <staticText>
            <reportElement x = "414" y = "3" width = "121" height = "15" />

            <textElement textAlignment = "Center" verticalAlignment = "Middle">
               <font isBold = "true" />
            </textElement>

            <text><![CDATA[Country]]></text>
         </staticText>

         <staticText>
            <reportElement x = "0" y = "3" width = "136" height = "15" />

            <textElement textAlignment = "Center" verticalAlignment = "Middle">
               <font isBold = "true" />
            </textElement>

            <text><![CDATA[Name]]></text>
         </staticText>

      </band>
   </columnHeader>

   <detail>
      <band height = "16">

         <staticText>
            <reportElement mode = "Opaque" x = "0" y = "0" width = "535" height = "14"
               backcolor = "#E5ECF9" />

            <box>
               <bottomPen lineWidth = "0.25" lineColor = "#CCCCCC" />
            </box>

            <textElement />

            <text>
               <![CDATA[]]>
            </text>
         </staticText>

         <textField>
            <reportElement x = "414" y = "0" width = "121" height = "15" />

            <textElement textAlignment = "Center" verticalAlignment = "Middle">
               <font size = "9" />
            </textElement>

            <textFieldExpression class = "java.lang.String">
               <![CDATA[$F{country}]]>
            </textFieldExpression>
         </textField>

         <textField>
            <reportElement x = "0" y = "0" width = "136" height = "15" />
            <textElement textAlignment = "Center" verticalAlignment = "Middle" />

            <textFieldExpression class = "java.lang.String">
               <![CDATA[$F{name}]]>
            </textFieldExpression>
         </textField>

      </band>
   </detail>

</jasperReport>

报告填充的 java 代码保持不变。文件 C:\tools\jasperreports-5.0.1\test\src\com.tutorialspoint\JasperReportFill.java 的内容如下 −

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.Map;

import net.sf.jasperreports.engine.JRException;
import net.sf.jasperreports.engine.JasperFillManager;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;

public class JasperReportFill {
   @SuppressWarnings("unchecked")
   public static void main(String[] args) {
      String sourceFileName =
      "C://tools/jasperreports-5.0.1/test/jasper_report_template.jasper";

      DataBeanList DataBeanList = new DataBeanList();
      ArrayList<DataBean> dataList = DataBeanList.getDataBeanList();

      JRBeanCollectionDataSource beanColDataSource =
      new JRBeanCollectionDataSource(dataList);

      Map parameters = new HashMap();
      /**
       * Passing ReportTitle and Author as parameters
       */
      parameters.put("ReportTitle", "List of Contacts");
      parameters.put("Author", "Prepared By Manisha");

      try {
         JasperFillManager.fillReportToFile(
         sourceFileName, parameters, beanColDataSource);
      } catch (JRException e) {
         e.printStackTrace();
      }
   }
}

POJO 文件 C:\tools\jasperreports-5.0.1\test\src\com.tutorialspoint\DataBean.java 的内容如下 −

package com.tutorialspoint;

public class DataBean {
   private String name;
   private String country;

   public String getName() {
      return name;
   }

   public void setName(String name) {
      this.name = name;
   }

   public String getCountry() {
      return country;
   }

   public void setCountry(String country) {
      this.country = country;
   }
}

文件 C:\tools\jasperreports-5.0.1\test\src\com.tutorialspoint\DataBeanList.java 的内容如下 −

package com.tutorialspoint;

import java.util.ArrayList;

public class DataBeanList {
   public ArrayList<DataBean> getDataBeanList() {
      ArrayList<DataBean> dataBeanList = new ArrayList<DataBean>();

      dataBeanList.add(produce("Manisha", "India"));
      dataBeanList.add(produce("Dennis Ritchie", "USA"));
      dataBeanList.add(produce("V.Anand", "India"));
      dataBeanList.add(produce("Shrinath", "California"));

      return dataBeanList;
   }

   /**
    * This method returns a DataBean object,
    * with name and country set in it.
    */
   private DataBean produce(String name, String country) {
      DataBean dataBean = new DataBean();
      dataBean.setName(name);
      dataBean.setCountry(country);

      return dataBean;
   }
}

报告生成

我们将使用常规 ANT 构建过程编译并执行上述文件。文件 build.xml(保存在目录 C:\tools\jasperreports-5.0.1\test 下)的内容如下所示。

导入文件 - baseBuild.xml 取自环境设置一章，应将其放在与 build.xml 相同的目录中。

<?xml version = "1.0" encoding = "UTF-8"?>
<project name = "JasperReportTest" default = "viewFillReport" basedir = ".">
   <import file = "baseBuild.xml" />

   <target name = "viewFillReport" depends = "compile,compilereportdesing,run"
      description = "Launches the report viewer to preview
      the report stored in the .JRprint file.">

      <java classname = "net.sf.jasperreports.view.JasperViewer" fork = "true">
         <arg value = "-F${file.name}.JRprint" />
         <classpath refid = "classpath" />
      </java>
   </target>

   <target name = "compilereportdesing" description = "Compiles the JXML file and
      produces the .jasper file.">

      <taskdef name = "jrc" classname = "net.sf.jasperreports.ant.JRAntCompileTask">
         <classpath refid = "classpath" />
      </taskdef>

      <jrc destdir = ".">
         <src>
            <fileset dir = ".">
               <include name = "*.jrxml" />
            </fileset>
         </src>
         <classpath refid = "classpath" />
      </jrc>

   </target>

</project>

接下来我们打开命令行窗口，进入build.xml所在的目录，最后执行命令ant -Dmain-class=com.tutorialspoint.JasperReportFill(viewFullReport是默认目标)，如下 −

C:\tools\jasperreports-5.0.1\test>ant -Dmain-class=com.tutorialspoint.JasperReportFill
Buildfile: C:\tools\jasperreports-5.0.1\test\build.xml

clean-sample:
   [delete] Deleting directory C:\tools\jasperreports-5.0.1\test\classes
   [delete] Deleting: C:\tools\jasperreports-5.0.1\test\jasper_report_template.jasper
   [delete] Deleting: C:\tools\jasperreports-5.0.1\test\jasper_report_template.jrprint

compile:
   [mkdir] Created dir: C:\tools\jasperreports-5.0.1\test\classes
   [javac] C:\tools\jasperreports-5.0.1\test\baseBuild.xml:28: warning:
   'includeantruntime' was not set, defaulting to build.sysclasspath=last;
   set to false for repeatable builds
   [javac] Compiling 7 source files to C:\tools\jasperreports-5.0.1\test\classes

compilereportdesing:
   [jrc] Compiling 1 report design files.
   [jrc] log4j:WARN No appenders could be found for logger
   (net.sf.jasperreports.engine.xml.JRXmlDigesterFactory).
   [jrc] log4j:WARN Please initialize the log4j system properly.
   [jrc] log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig
   for more info.
   [jrc] File : C:\tools\jasperreports-5.0.1\test\jasper_report_template.jrxml ... OK.

run:
   [echo] Runnin class : com.tutorialspoint.JasperReportFill
   [java] log4j:WARN No appenders could be found for logger
   (net.sf.jasperreports.extensions.ExtensionsEnvironment).
   [java] log4j:WARN Please initialize the log4j system properly.

viewFillReport:
   [java] log4j:WARN No appenders could be found for logger
   (net.sf.jasperreports.extensions.ExtensionsEnvironment).
   [java] log4j:WARN Please initialize the log4j system properly.

BUILD SUCCESSFUL
Total time: 18 seconds

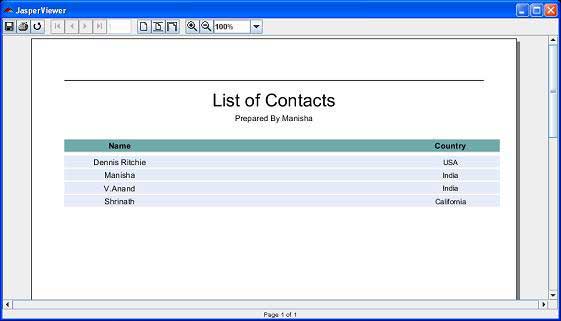

上述编译的结果是，打开了一个 JasperViewer 窗口，如下图所示 −

在这里，我们可以看到国家/地区名称按字母顺序降序排列。
