带有绘图带的样条图
以下是带有绘图带的样条图示例。
我们已经在 Highcharts 配置语法 章节中看到了用于绘制图表的配置。 现在，让我们了解一个带有绘图带的样条图示例，其中采取了额外的配置/步骤。
配置
使用 yAxis.plotBands 属性配置图带区。 使用"from"和"to"属性设置图带范围。 使用 'color' 属性设置图带的颜色。 使用"label"属性设置图带标签的样式。
yAxis
var yAxis = {
title: {
text: 'Wind speed (m/s)'
},
min: 0,
minorGridLineWidth: 0,
gridLineWidth: 0,
alternateGridColor: null,
plotBands: [
{ // Light air
from: 0.3,
to: 1.5,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Light air',
style: {
color: '#606060'
}
}
},
{ // Light breeze
from: 1.5,
to: 3.3,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Light breeze',
style: {
color: '#606060'
}
}
},
{ // Gentle breeze
from: 3.3,
to: 5.5,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Gentle breeze',
style: {
color: '#606060'
}
}
},
{ // Moderate breeze
from: 5.5,
to: 8,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Moderate breeze',
style: {
color: '#606060'
}
}
},
{ // Fresh breeze
from: 8,
to: 11,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Fresh breeze',
style: {
color: '#606060'
}
}
},
{ // Strong breeze
from: 11,
to: 14,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Strong breeze',
style: {
color: '#606060'
}
}
},
{ // High wind
from: 14,
to: 15,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'High wind',
style: {
color: '#606060'
}
}
}
]
};
示例
app.component.ts
import { Component } from '@angular/core';
import * as Highcharts from 'highcharts';
import * as highchartsTreemap from 'highcharts/modules/treemap';
highchartsTreemap(Highcharts);
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
styleUrls: ['./app.component.css']
})
export class AppComponent {
highcharts = Highcharts;
chartOptions = {
chart : {
type: 'spline'
},
title : {
text: 'Wind speed during two days'
},
subtitle : {
text: 'October 6th and 7th 2009 at two locations in Vik i Sogn, Norway'
},
xAxis : {
type: 'datetime',
labels: {
overflow: 'justify'
}
},
yAxis : {
title: {
text: 'Wind speed (m/s)'
},
min: 0,
minorGridLineWidth: 0,
gridLineWidth: 0,
alternateGridColor: null,
plotBands: [
{ // Light air
from: 0.3,
to: 1.5,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Light air',
style: {
color: '#606060'
}
}
},
{ // Light breeze
from: 1.5,
to: 3.3,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Light breeze',
style: {
color: '#606060'
}
}
},
{ // Gentle breeze
from: 3.3,
to: 5.5,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Gentle breeze',
style: {
color: '#606060'
}
}
},
{ // Moderate breeze
from: 5.5,
to: 8,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Moderate breeze',
style: {
color: '#606060'
}
}
},
{ // Fresh breeze
from: 8,
to: 11,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'Fresh breeze',
style: {
color: '#606060'
}
}
},
{ // Strong breeze
from: 11,
to: 14,
color: 'rgba(0, 0, 0, 0)',
label: {
text: 'Strong breeze',
style: {
color: '#606060'
}
}
},
{ // High wind
from: 14,
to: 15,
color: 'rgba(68, 170, 213, 0.1)',
label: {
text: 'High wind',
style: {
color: '#606060'
}
}
}
]
},
tooltip : {
valueSuffix: ' m/s'
},
plotOptions : {
spline: {
lineWidth: 4,
states: {
hover: {
lineWidth: 5
}
},
marker: {
enabled: false
},
pointInterval: 3600000, // one hour
pointStart: Date.UTC(2009, 9, 6, 0, 0, 0)
}
},
series : [
{
name: 'Vik i Sogn',
data: [4.3, 5.1, 4.3, 5.2, 5.4, 4.7, 3.5, 4.1, 5.6, 7.4, 6.9, 7.1,
7.9, 7.9, 7.5, 6.7, 7.7, 7.7, 7.4, 7.0, 7.1, 5.8, 5.9, 7.4,
8.2, 8.5, 9.4, 8.1, 10.9, 10.4, 10.9, 12.4, 12.1, 9.5, 7.5,
7.1, 7.5, 8.1, 6.8, 3.4, 2.1, 1.9, 2.8, 2.9, 1.3, 4.4, 4.2,
3.0, 3.0]
},
{
name: 'Norway',
data: [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.1, 0.0, 0.3, 0.0,
0.0, 0.4, 0.0, 0.1, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0,
0.0, 0.6, 1.2, 1.7, 0.7, 2.9, 4.1, 2.6, 3.7, 3.9, 1.7, 2.3,
3.0, 3.3, 4.8, 5.0, 4.8, 5.0, 3.2, 2.0, 0.9, 0.4, 0.3, 0.5, 0.4]
}
],
navigation : {
menuItemStyle: {
fontSize: '10px'
}
}
};
}

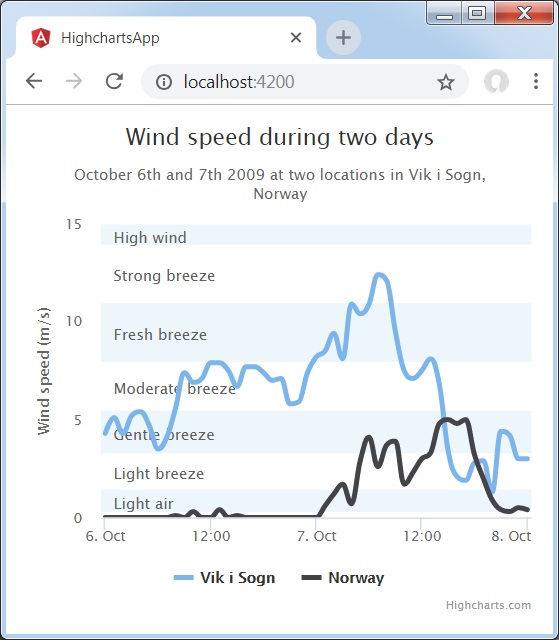

结果
验证结果。
