Angular Highcharts - 3D 散点图

以下是 3D 散点图的示例。

我们已经在Highcharts 配置语法章节中看到了用于绘制图表的配置。

下面给出了 3D 散点图的示例。

配置

现在让我们看看采取的其他配置/步骤。

option3D

将散点图类型配置为基于 3D。 Options3D 设置启用的 3D 选项。

chart: {
   options3d: {
      enabled: true,
      alpha: 15,
      beta: 15,
      depth: 50,
      viewDistance: 25
   }
}

示例

app.component.ts

import { Component } from '@angular/core';
import * as Highcharts from 'highcharts';
import highcharts3D from 'highcharts/highcharts-3d.src';
highcharts3D(Highcharts);
@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {
   highcharts = Highcharts;
   chartOptions = {
      chart: {
         type: 'scatter',
         marginBottom: 100,
         marginRight: 50,
         options3d: {
            enabled: true,
            alpha: 10,
            beta: 30,
            depth: 250,
            viewDistance: 5,
            frame:{
               bottom :{
                  size: 1,
                  color: 'rgba(0, 0, 0, 0.02)'
               },
               back :{
                  size: 1,
                  color: 'rgba(0, 0, 0, 0.04)'
               },
               side :{
                  size: 1,
                  color: 'rgba(0, 0, 0, 0.06)'
               }
            }
         }
      },
      title : {
         text: '3D Scatter Plot'
      },
      xAxis:{
         min:0,
         max:10
      },
      yAxis:{
         min:0,
         max:10
      },
      zAxis:{
         min:0,
         ax:10
      },
      series : [{
         name: 'Reading',
         data: [
            [1, 6, 5], [8, 7, 9], [1, 3, 4], [4, 6, 8], [5, 7, 7], [6, 9, 6],
            [7, 0, 5], [2, 3, 3], [3, 9, 8], [3, 6, 5], [4, 9, 4], [2, 3, 3],
            [6, 9, 9], [0, 7, 0], [7, 7, 9], [7, 2, 9], [0, 6, 2], [4, 6, 7],
            [3, 7, 7], [0, 1, 7], [2, 8, 6], [2, 3, 7], [6, 4, 8], [3, 5, 9],
            [7, 9, 5], [3, 1, 7], [4, 4, 2], [3, 6, 2], [3, 1, 6], [6, 8, 5],
            [6, 6, 7], [4, 1, 1], [7, 2, 7], [7, 7, 0], [8, 8, 9], [9, 4, 1],
            [8, 3, 4], [9, 8, 9], [3, 5, 3], [0, 2, 4], [6, 0, 2], [2, 1, 3],
            [5, 8, 9], [2, 1, 1], [9, 7, 6], [3, 0, 2], [9, 9, 0], [3, 4, 8],
            [2, 6, 1], [8, 9, 2], [7, 6, 5], [6, 3, 1], [9, 3, 1], [8, 9, 3],
            [9, 1, 0], [3, 8, 7], [8, 0, 0], [4, 9, 7], [8, 6, 2], [4, 3, 0],
            [2, 3, 5], [9, 1, 4], [1, 1, 4], [6, 0, 2], [6, 1, 6], [3, 8, 8],
            [8, 8, 7], [5, 5, 0], [3, 9, 6], [5, 4, 3], [6, 8, 3], [0, 1, 5],
            [6, 7, 3], [8, 3, 2], [3, 8, 3], [2, 1, 6], [4, 6, 7], [8, 9, 9],
            [5, 4, 2], [6, 1, 3], [6, 9, 5], [4, 8, 2], [9, 7, 4], [5, 4, 2],
            [9, 6, 1], [2, 7, 3], [4, 5, 4], [6, 8, 1], [3, 4, 0], [2, 2, 6],
            [5, 1, 2], [9, 9, 7], [6, 9, 9], [8, 4, 3], [4, 1, 7], [6, 2, 5],
            [0, 4, 9], [3, 5, 9], [6, 9, 1], [1, 9, 2]
         ]
      }]
   };
}

结果

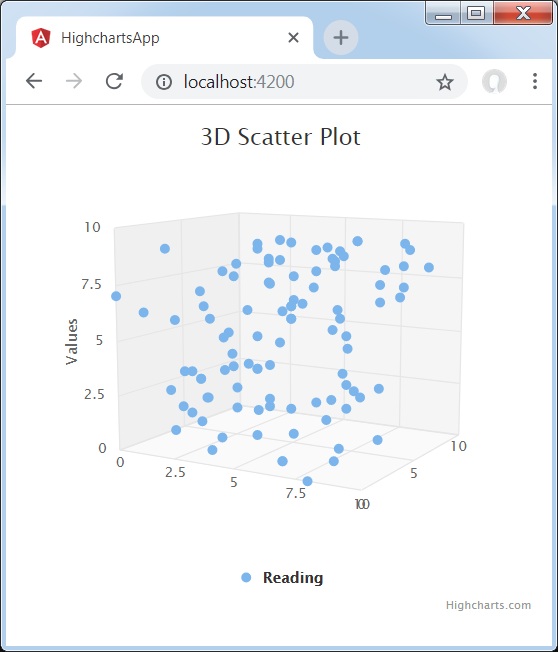

验证结果。
